Trucks



After the DECK, the TRUCKS are the next most important part of your ride. Different trucks offer DRASTICALLY different performances, so finding the right set for your riding style/ chosen terrain is important.



Trucks aren't just responsible for steering your board - different trucks will give different wheel spans, and effect the overall length of the finished board.

All Trucks are fundamentally made of 3 parts - The Baseplate, the Hanger & the Kingpin. The Hanger comes with the Axles already fitted at the factory. The Hanger & the Baseplate are connected by a Kingpin - a bit of weight over the pivot point(s), and the steerings in place!

Different trucks require different mounting angles in to get the full performance out of them - meaning not all trucks will fit all decks.


Designed to compliment all types of Mountainboarding, TRAMPA’s ATB SPRING TRUCKS are highly tunable, stable at high speeds, light in the air, and super strong for those hard landings. If you’re looking to progress in Mountainboarding, these are the trucks for you.

In order to get the full performance out of ATB Spring trucks, they should be mounted on a 35º Deck.

Spring trucks use a horizontal kingpin design, with springs squeezed in between the baseplate & hanger, adding the steering resistance (hence the name).

With the addition of some TRAMPA DAMPAS (available in various hardnesses) & SPRING ADJUSTORS, its possible to pre-load the resistance in each spring, meaning you can custom tune the trucks in each corner of your board to your personal requirements.

Hangers & Baseplates made from Premium Forged Aluminum. Choices of Axel Material.

ATB SPRING TRUCKS will fit all 5”-9” Wheels in the TRAMPA range.

We offer three different models of SPRING TRUCK - INFINITY, VERTIGO & ULTIMATE.

TRUCK AXLES WIDTH WEIGHT
INFINITY 12mm Solid Steel 16" 1000g
VERTIGO 12mm Hollow Steel 16" 850g
ULTIMATE 9.525mm Solid Titanium 16"

750g

SAVAGE 12mm Solid CRMO Steel 17"

1020g

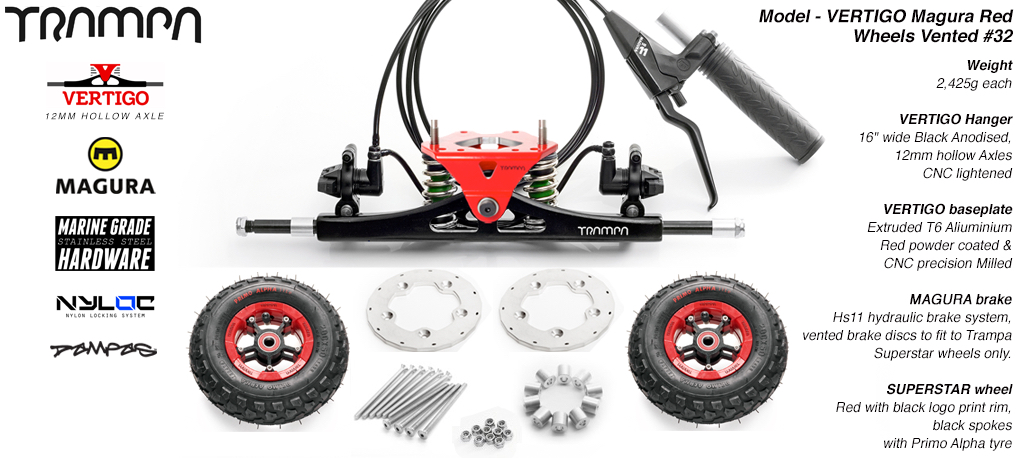

MAGURA ATB BRAKE TRUCKS
"A New Level of Control Over Your Board"

The Magura Brake Kit fits securely to INFINITY or VERTIGO Hangers, and adds disc-brake stopping power to your board - perfect for those riding hills with some eye-watering gradients! Transform your riding range - make terrain you previously thought of as 'Off Limits' into new & easily ride-able terrain you just have to cruise! You will quickly gain a new air of confidence in your ability by riding with the MAGURA Hydraulic brake system!


Compatible with any Deck TRAMPA offers the IR Trucks have a 17 Inch Wheel Base (they are 1 Inch Wider than regular ATB Spring Trucks) & they feel tremendously stable at speed whilst still offering heaps of steering regardless of what Deck they are fitted too.

Using a simple mechanical principle of doubling the steering resistance of that of a regular ATB skate truck, squeezing double the amount of Kingpins & Bushings between the Baseplate the hanger, one stack directly in front of the other, to literally double the steering resistance that is much more suitable for larger sized riders making the ride feel very stable on a wider based steering systems compared to the original Single Skate or loose set Spring Truck steering system...

Each bushing is located in a Seat inside the hanger body (BUSHING IRIS) & Baseplate. Everything is held together using 2x 50mm long skate kingpins which are taken from other models we offer...

TRUCK AXEL KINGPIN WEIGHT
TRAMPA IR 12mm Hollow Steel Nickel Plated 983g

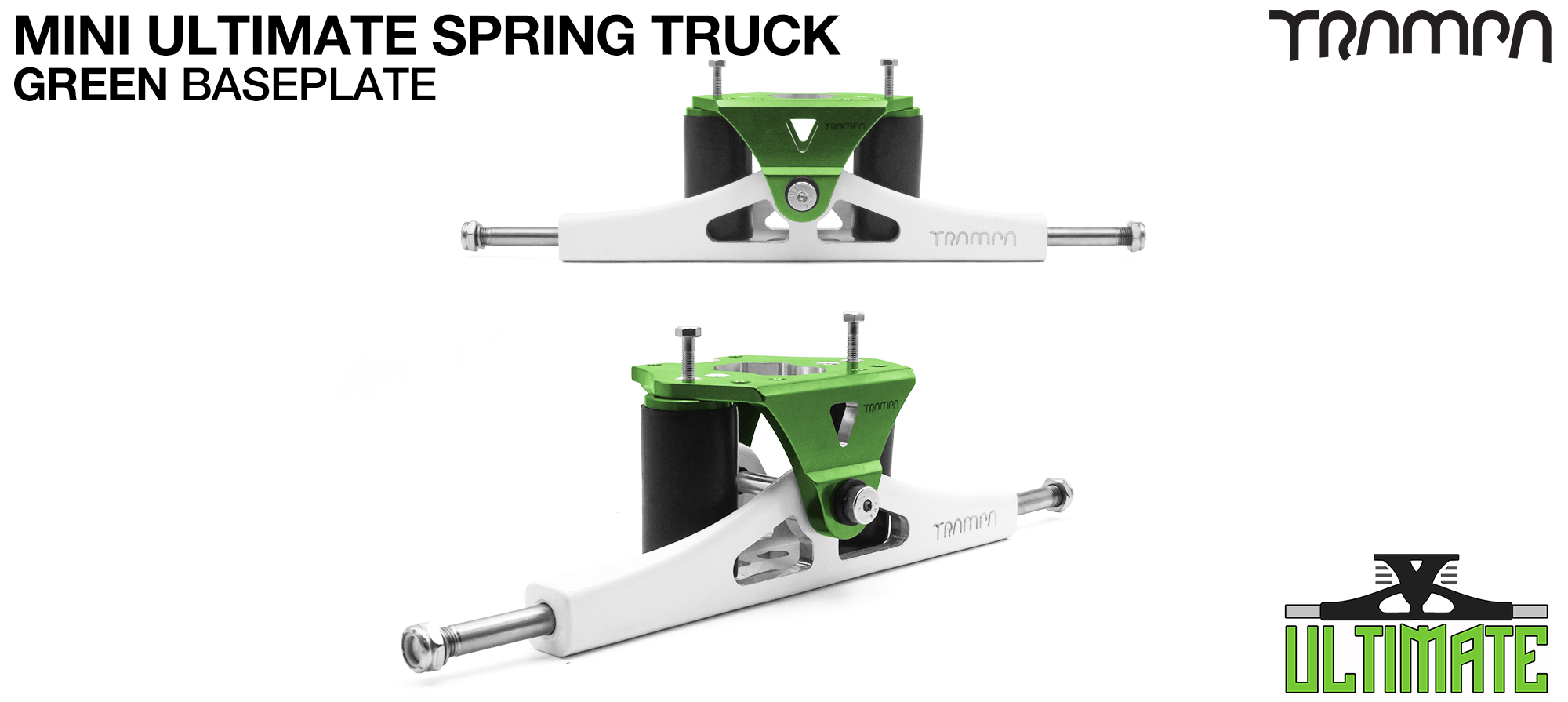

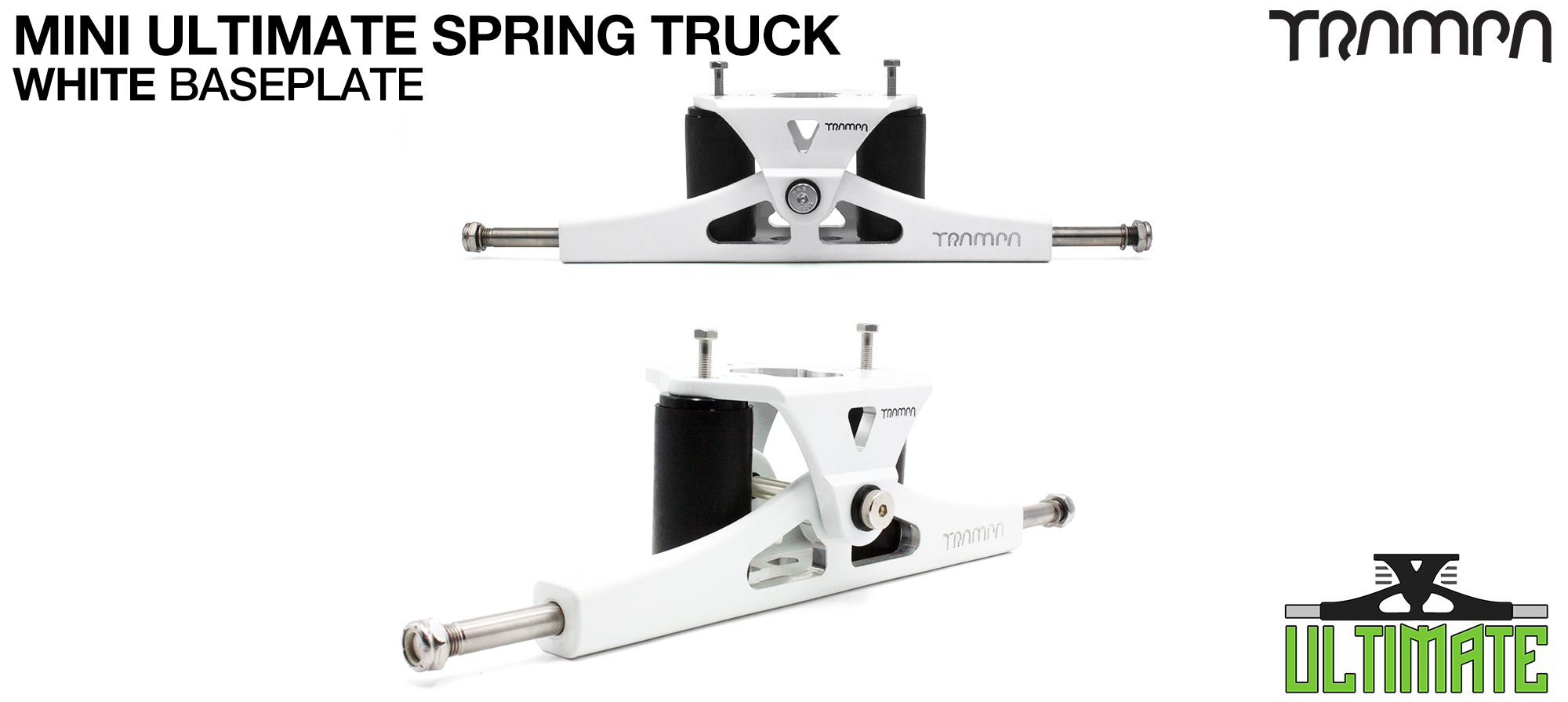

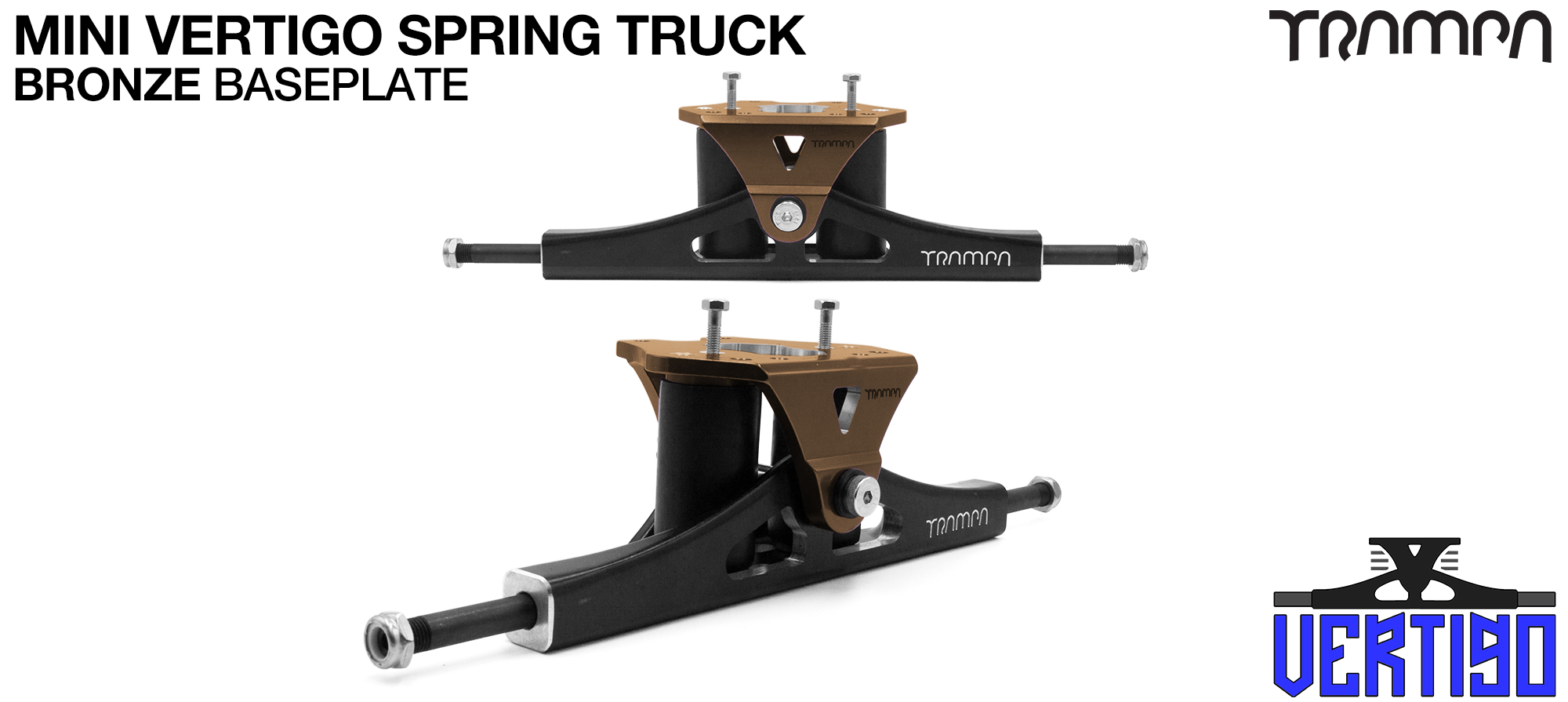

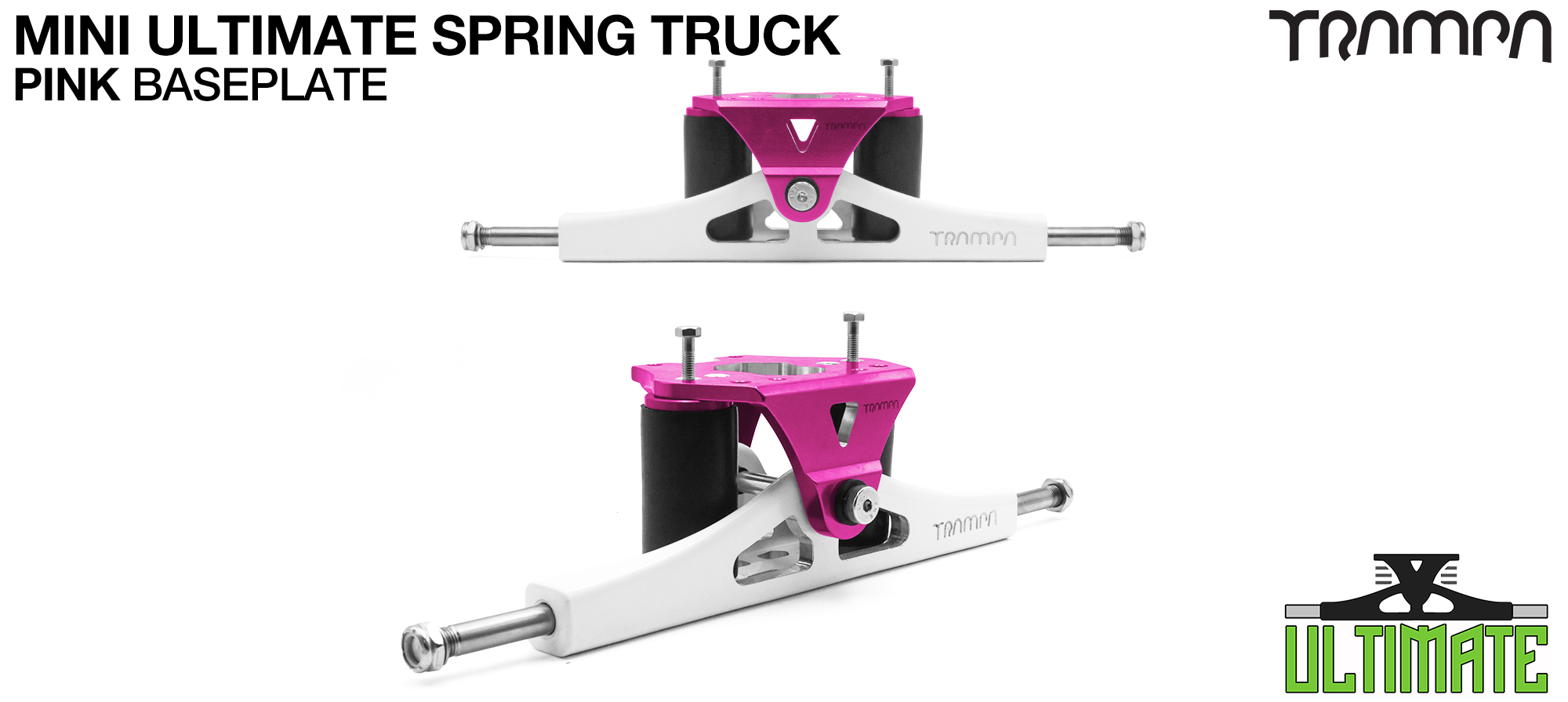

Designed to be the most multi-functional steering system ever TRAMPA's MINI SPRING TRUCKS can be further tuned from their larger predecessor. Riders can adjust & custom tune their steering range to just about any setting, for any kind of terrain, or ride type they can imagine.

In order to get the full performance out of ATB Spring trucks, they should be mounted on a 35º Deck.

Spring trucks use a horizontal kingpin design, with springs squeezed in between the baseplate & hanger, adding the steering resistance (hence the name).

With the addition of some TRAMPA DAMPAS (available in various hardnesses) & SPRING ADJUSTORS, its possible to pre-load the resistance in each spring, meaning you can custom tune the trucks in each corner of your board to your personal requirements.

TRAMPA's MINI SPRING TRUCKS can be further tuned, with two possible spring positions - Inside for super carvey turns & Outside for stability at high speeds.

MINI SPRING TRUCKS will fit all 5"-8" Wheels in the TRAMPA range.

We offer three different models of MINI SPRING TRUCK - INFINITY, VERTIGO & ULTIMATE.

TRUCK AXEL KINGPIN WEIGHT
INFINITY 9.525mm Solid Steel Nickel Plated 817g
VERTIGO 9.525mm Hollow Steel Stainless Steel 737g
ULTIMATE 9.525mm Titanium Titanium 703g

Being 12 Inch wide & Mounted at 50º the 12FIFTIES Extra Wide Longboard trucks get their name from their dimensions.

TRAMPA's Super Sexy 12FIFTIES Extra Wide Longboard Trucks are absolutely fabulous! CNC-precision shaped from a solid Block of T6 Aluminum, the 50º Mounted Hanger measures 12.5 Inch wide & is fitted with 9.525mm (3/8ths of an inch) Hardened Steel axels - meaning this Longboard Truck will accommodate every wheel in the TRAMPA product range from 83 or 90mm STICKIES Longboard WHEELS, 125mm GUMMIES Longboard Tyres or the Amazing 6.5 Inch URBAN TREADS Tyres!

Coming with a custom made adapter, it's possible to mount 12-FIFTIES at three different heights, each giving a different ride-feel, and opening up different wheel options.

TRUCK AXEL KINGPIN WEIGHT
12-FIFTIES 9.525mm Hardened Steel Stainless Steel 610g

Be it Mountainboard or Kiteboard, TRAMPA's own 9.525mm Hollowed & Heat Treated, Steel Axle Skate Trucks are the recommended Truck choice for all small or beginner riders learning the basics.

In order to get the full performance out of ATB SKATE Trucks, they should be mounted on a 15º Deck.

Skate Trucks use a vertically mounted Kingpin to 'pivot & steer'. Using a vertically mounted kingpin means gentle leaning left or right over the Kingpin will easily create steering.

This single pivot point makes steering super easy, but will also more than likely lead to some ‘speed wobble’ at higher speeds, or on rougher terrain - which is why we recommend Spring Trucks for heavier, progressing riders.

TRUCK AXEL KINGPIN WEIGHT
ATB SKATE TRUCKS 9.525mm Hardened Steel Stainless Steel 614g

The Caliber II Longboard Truck is designed for linking super carvey turns together, whilst still being able to handle reasonable top speeds without wobble. The FORGED HANGER is not only reversible, but when flipped there is no rake to throw off the ride. Supplied with an 8mm Straight through SOLID STEEL axle the Caliber II Longboard Trucks will accept most if not all standard longboard & skateboard wheels on the market.

The pivot of the baseplate is self contained gaining maximum strength, whilst the Bushing seats within the Hanger & the Baseplate are symmetrical, with an optimal setup for any style of bushing. As the Caliber II's are designed for Carving they are supplied with Barrel & Cone 'Blood Orange Bushings' at an 89a (firm rebound) durometer - giving you a stable ride, while the cone assists in easier carving.

The Baseplate & the Hanger are connected using a Grade 8 Steel Kingpin to ensure your trucks stay together no matter how hard you push them!

Caliber II Longboard Trucks are available in three different models -
44º Kingpin with 10” Axles
50º Kingpin with 9” Axles
50º Kingpin with 10” Axles

TRUCK AXEL KINGPIN WEIGHT
CALIBER II 8mm Hardened Steel Stainless Steel 464g
