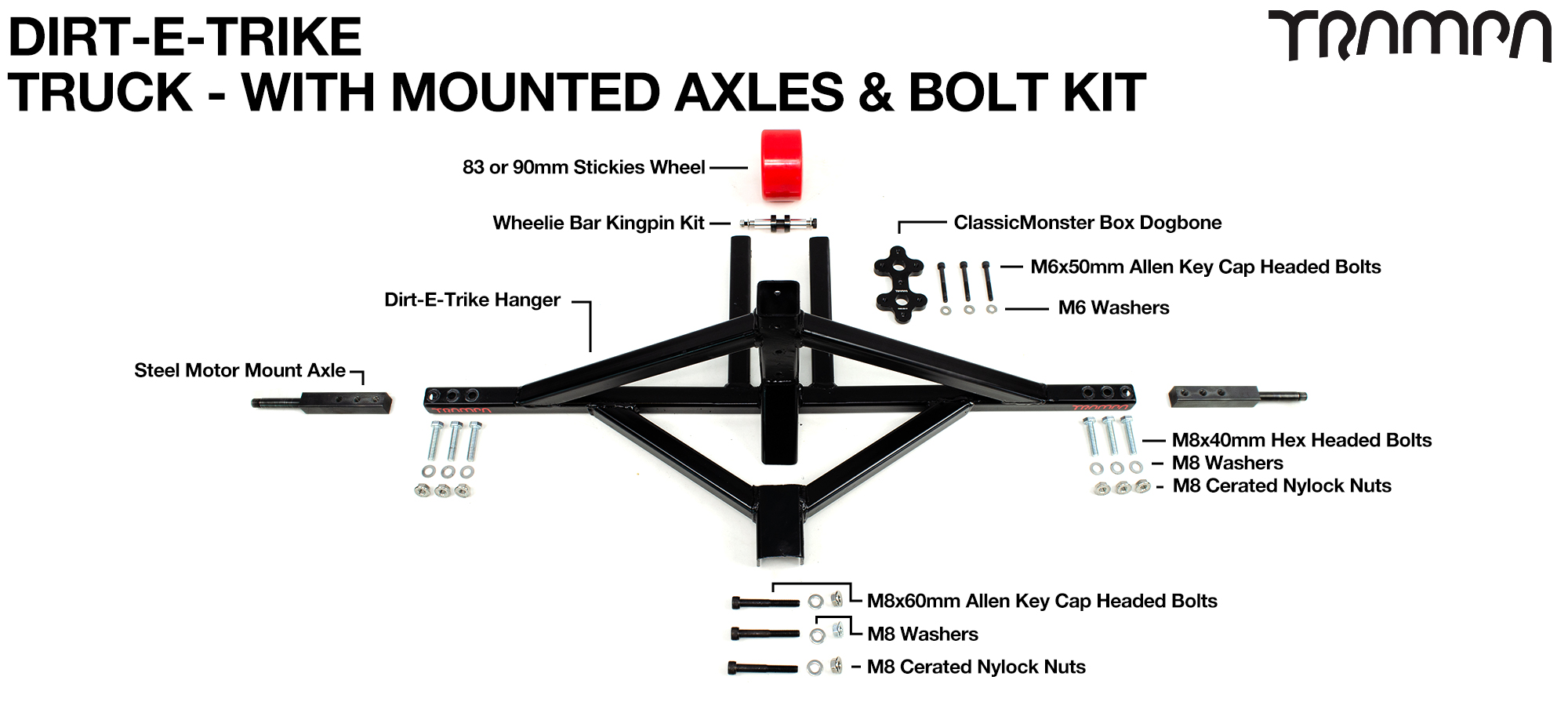

Home»Trucks»DIRT-E-TRIKE TRUCK»DIRT-E-TRIKE TRUCK

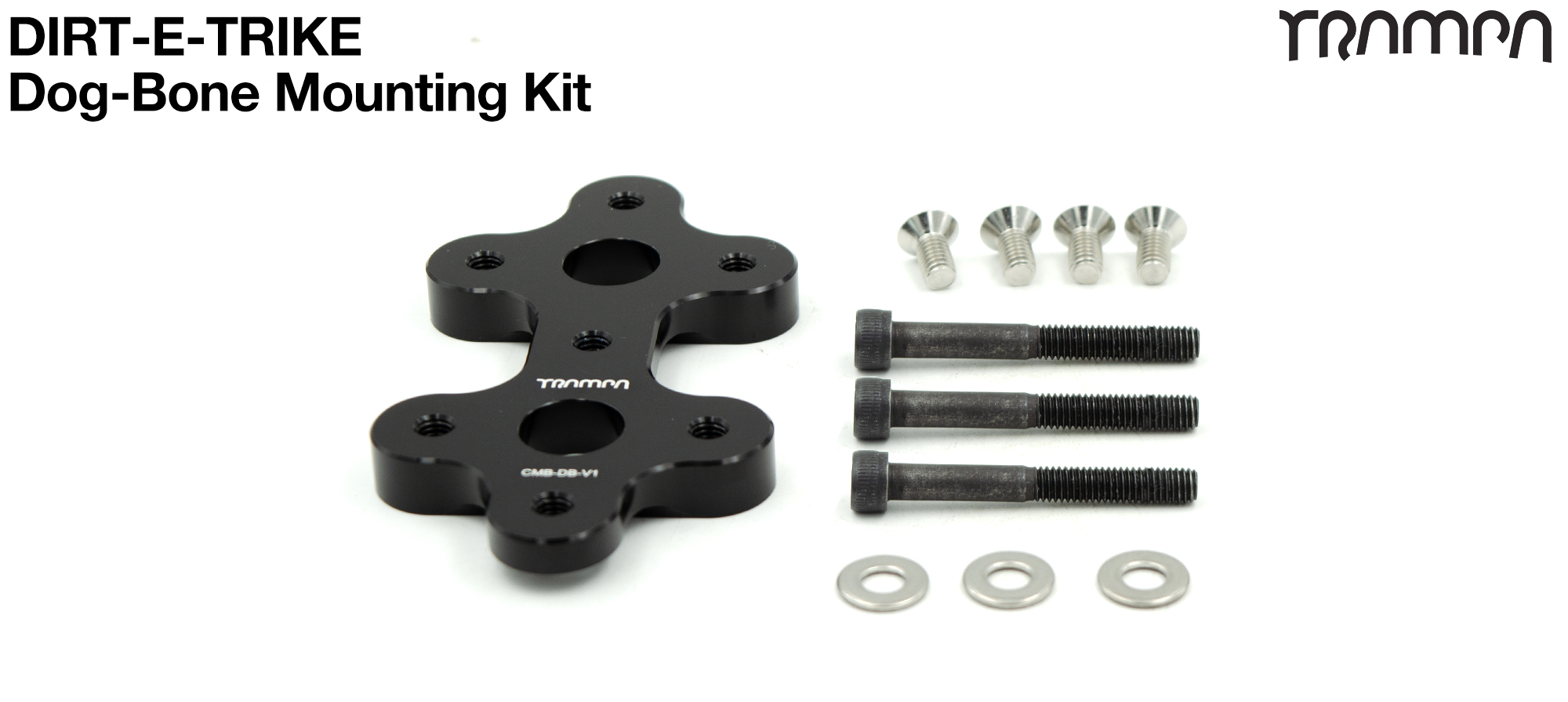

Classic Monster Box DOG BONE is used to mount the Classic Monster box securely to the deck

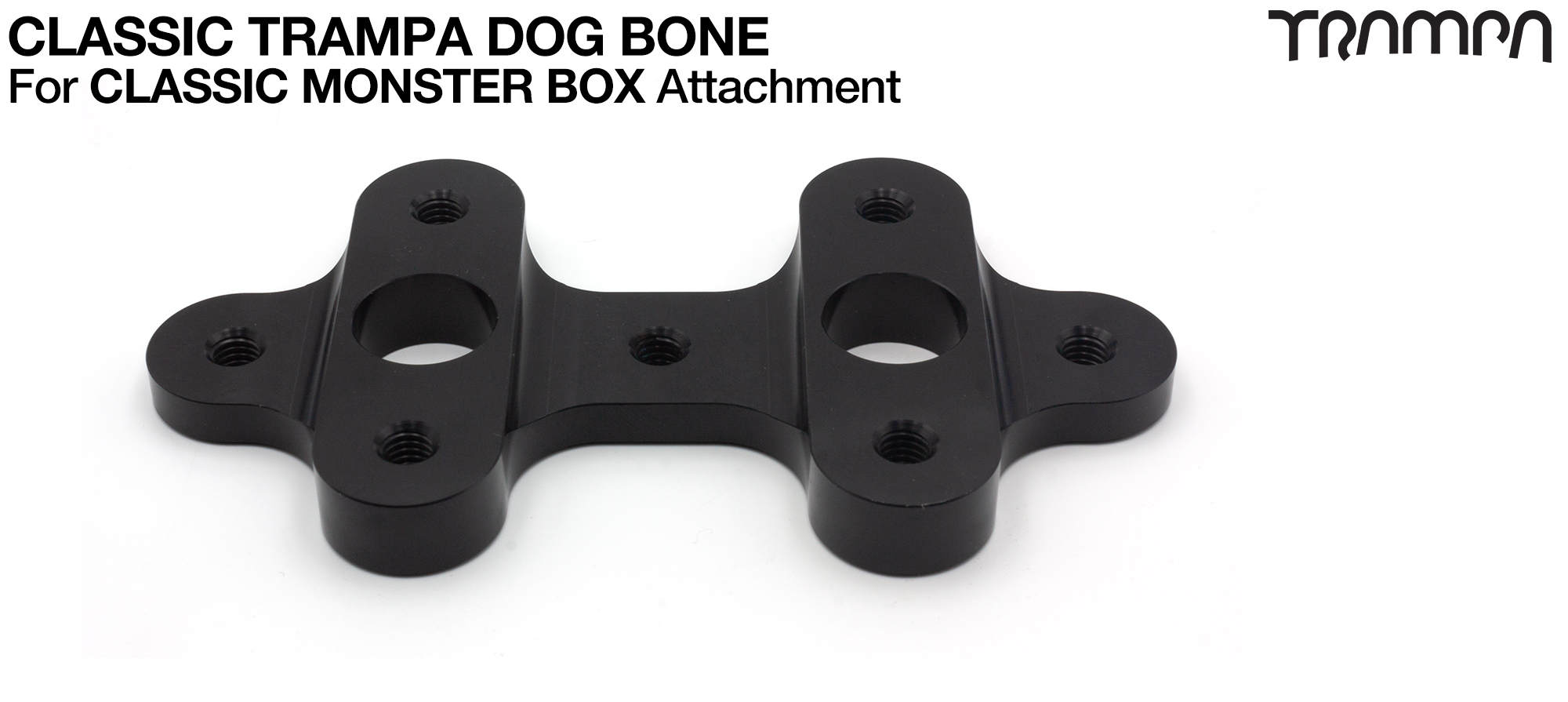

This is the Classic Monster Box DOG-BONE.

Made from T6 Alumium the DOG-BONE is used to mount the Classic Monster box securely to the TRAMPA deck.

The DOG-BONE requires 1x Top Rubber Mounting pads, 2x Bottom Rubber Mounting Pads, 4x M6x 25mm Countersunk Bolts & 3x M6x 12mm Countersunk Bolts to connect to the CLASSIC Box to the deck securely & without any rattles.

The DOG-BONE is Sold as a kit in Deck Accessories

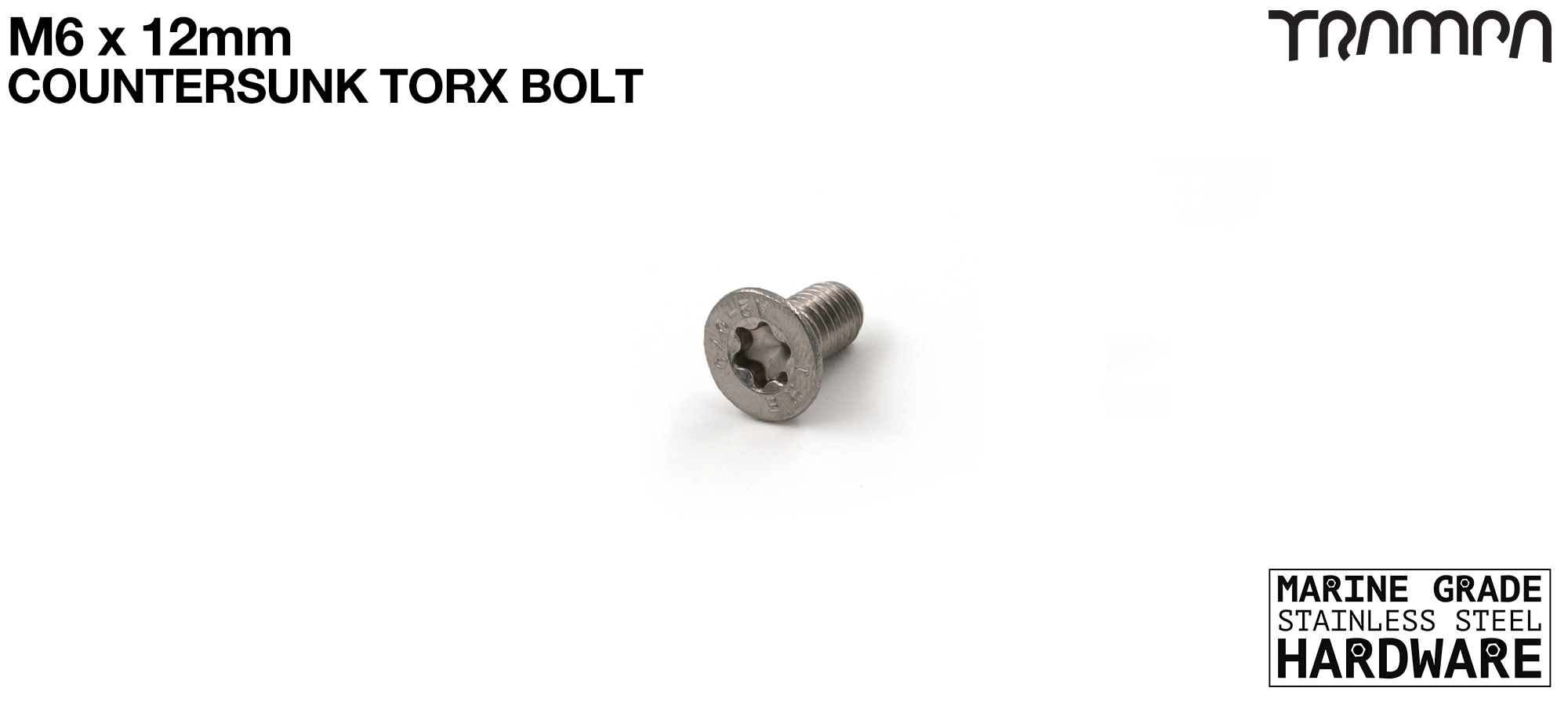

M6 x 12mm TORX Countersunk Head Bolt Marine Grade Stainless Steel

Made from A4 Marine Grade Stainless Steel, all of the nuts, bolts & screws used in a TRAMPA board have proven to be up to the challenge of holding everything together. Using Marine Grade Stainless Steel also means these Bolts will never rust on you! They can cope with the harshest of weather conditions & will laugh in the face of sandy/salty beaches or muddy freeride tracks - which can turn other manufacturers’ nuts & bolts into corroded rusting wrecks!

Wherever possible, we dip all our bolts into BLUE THREAD LOCKING PASTE, to ensure an extra strong & secure fix between the nuts & bolts.

The head of this Bolt is COUNTERSUNK, meaning that when screwed into position it sits flush & neat with the surface its screwed into. Preventing bolts from standing proud eliminates the chance of anything getting "snagged or hung-up" should it get caught on something..

Used For;

BIGGEST Beast Box

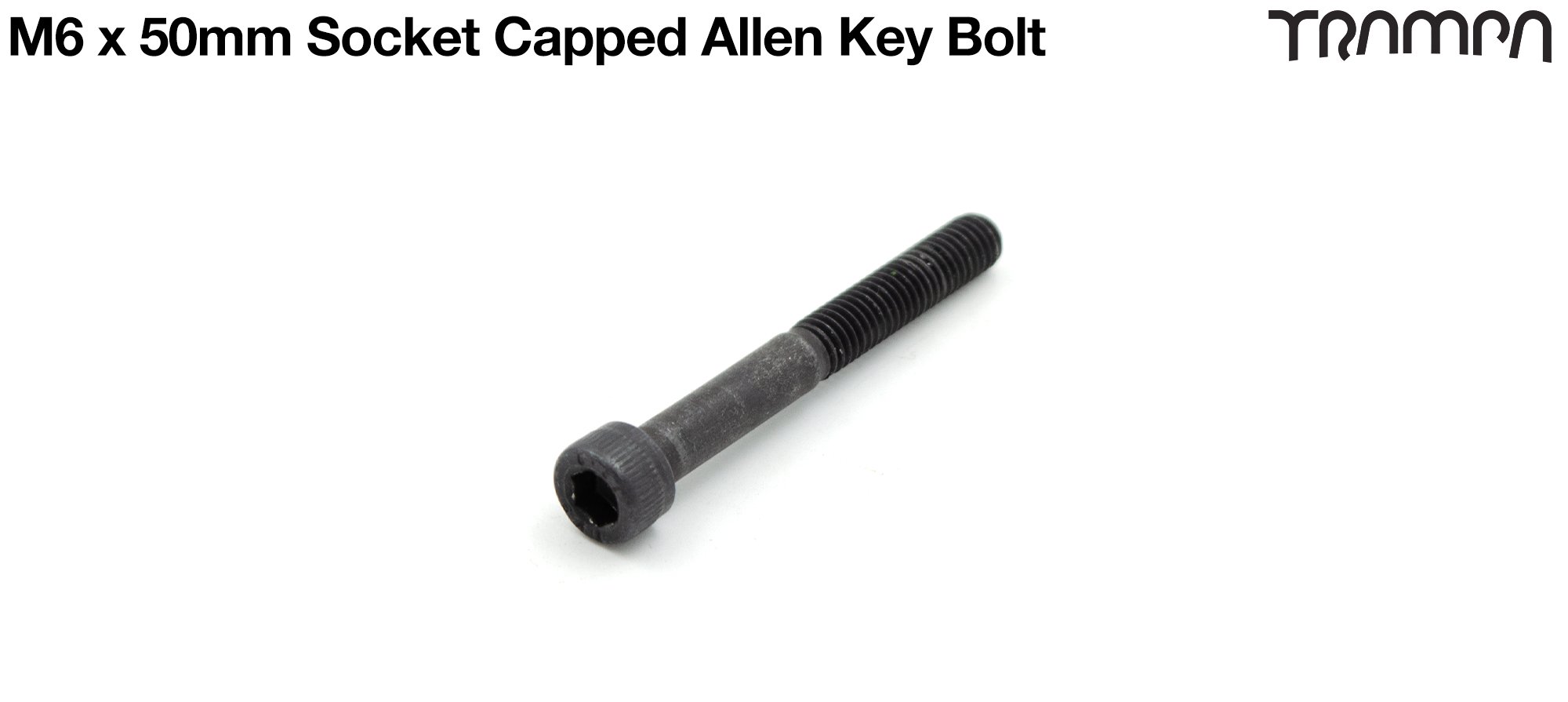

M6 x 50mm Socket Capped Allen-Key Bolt for primo hub - Marine Grade Stainless steel

TRAMPA's M6 x 30mm Socket Capped Bolt is made using A4 Marine Grade Stainless Steel. This Bolt is used to assemble the PRIMO 3 Spoke Hubs. The socket capped head of the Bolt screws neatly though the HUB eventually screwing into the Marine Grade Stainless Steel M6 Nylock Nut on the other side of the hub.

Weighing just 8 grams each, these Bolts are lightweight, look very sexy & are totally non corrosive. Using Marine Grade Stainless Steel, means these Bolts will never rust on you! They can cope with the most harsh of weather conditions & they laugh in the face of sandy/salty beaches or muddy freeride tracks, which do turn other manufacturers nuts & bolts into corrosive rusting wrecks! As well as being Non Corrosive all of the TRAMPA Bolts are diped in BLUE THREAD LOCKING PASTE to ensure an extra strong secure fix between the Nut & the Bolt.

You’ll will need a 5mm Allen Key  to tighten & loosen the Bolt from the nut. Ensure all your Nuts & Bolts are tight before riding!

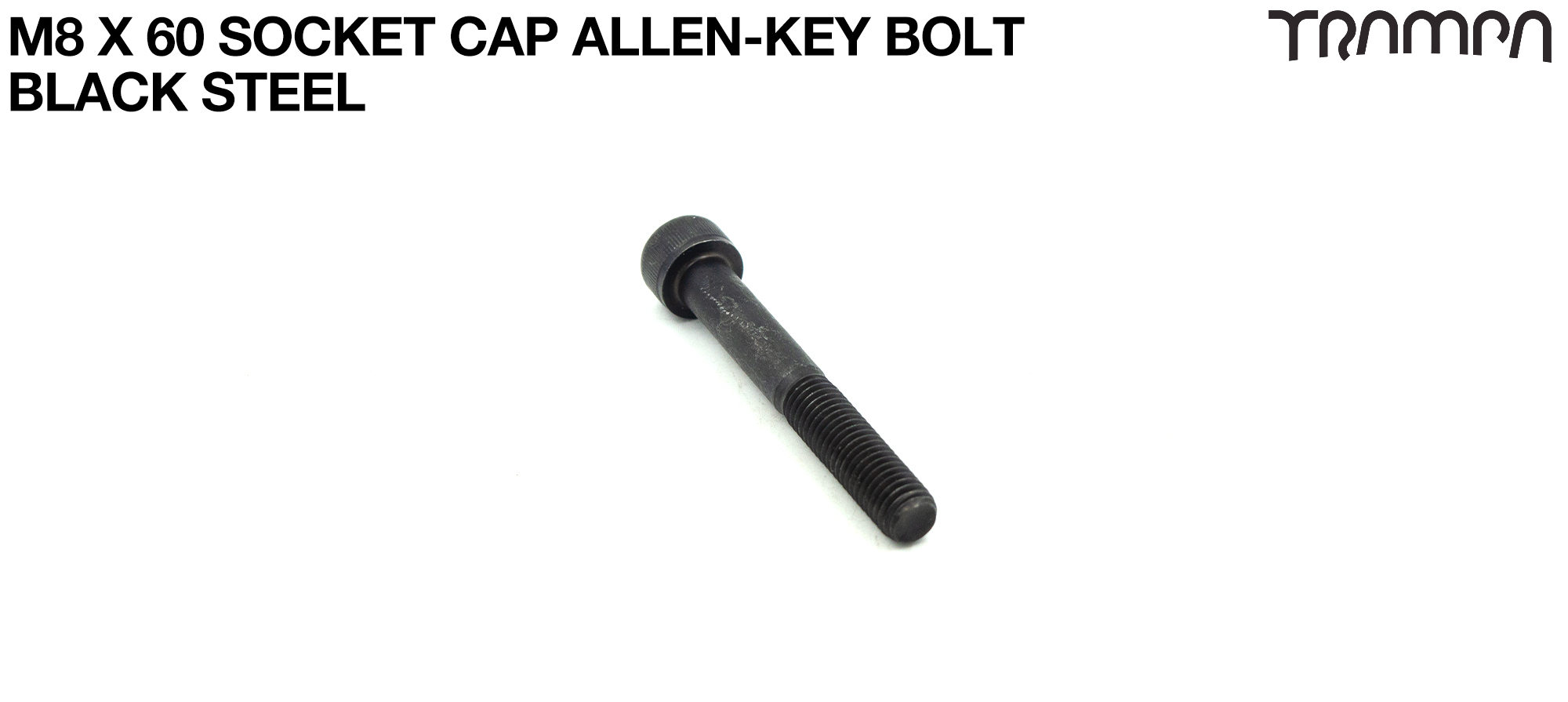

M8 x 60mm Socket Capped Allen-Key Bolt for primo hub - Marine Grade Stainless steel - Black Steel

TRAMPA's M6 x 30mm Socket Capped Bolt is made using A4 Marine Grade Stainless Steel. This Bolt is used to assemble the PRIMO 3 Spoke Hubs. The socket capped head of the Bolt screws neatly though the HUB eventually screwing into the Marine Grade Stainless Steel M6 Nylock Nut on the other side of the hub.

Weighing just 8 grams each, these Bolts are lightweight, look very sexy & are totally non corrosive. Using Marine Grade Stainless Steel, means these Bolts will never rust on you! They can cope with the most harsh of weather conditions & they laugh in the face of sandy/salty beaches or muddy freeride tracks, which do turn other manufacturers nuts & bolts into corrosive rusting wrecks! As well as being Non Corrosive all of the TRAMPA Bolts are diped in BLUE THREAD LOCKING PASTE to ensure an extra strong secure fix between the Nut & the Bolt.

You’ll will need a 5mm Allen Key  to tighten & loosen the Bolt from the nut. Ensure all your Nuts & Bolts are tight before riding!

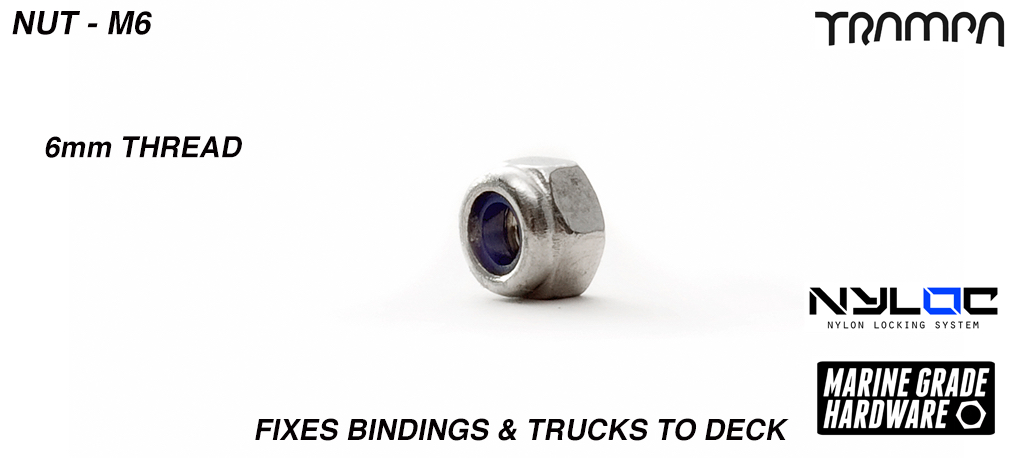

M6 Nut - Marine Grade Stainless steel Nylock Nut - Fixes Bindings & Trucks to Deck

Introducing TRAMPA's M6 (6mm Thread) A4 Grade Marine Grade Stainless steel Nylock Nut. This Nylock Nut will fit to all M6 Bolts regardless of their length. This A4 Marine Grade Stainless Steel Nut will never rust on you! It is fitted with the world renowned NYLOCK System (Nylock is a nylon locking system where Nylon is pasted into the threads of the nut so that when the bolt is tightened into the nut the nylon grabs the thread of the bolt holding it locking it in the thread ensuring things do not vibrate loose or fall off when being ridden on rough terrain like that which a Mountain or Kiteboard endures. The NYLOCK System is fitted as standard to all TRAMPA Nuts.

This Nut is used to fix to the Regular shaped M6 Bolts that hold the TRUCKS to the DECK for the HOLYPRO Decks & also for the countersunk bolts connecting the L BRACKETS TO the DECKs. Use an 10mm spanner or SOCKET for a Ratchet Driver to tighten the Nut onto the Bolt. Always ensure your Nuts & Bolts are tight before you ride!

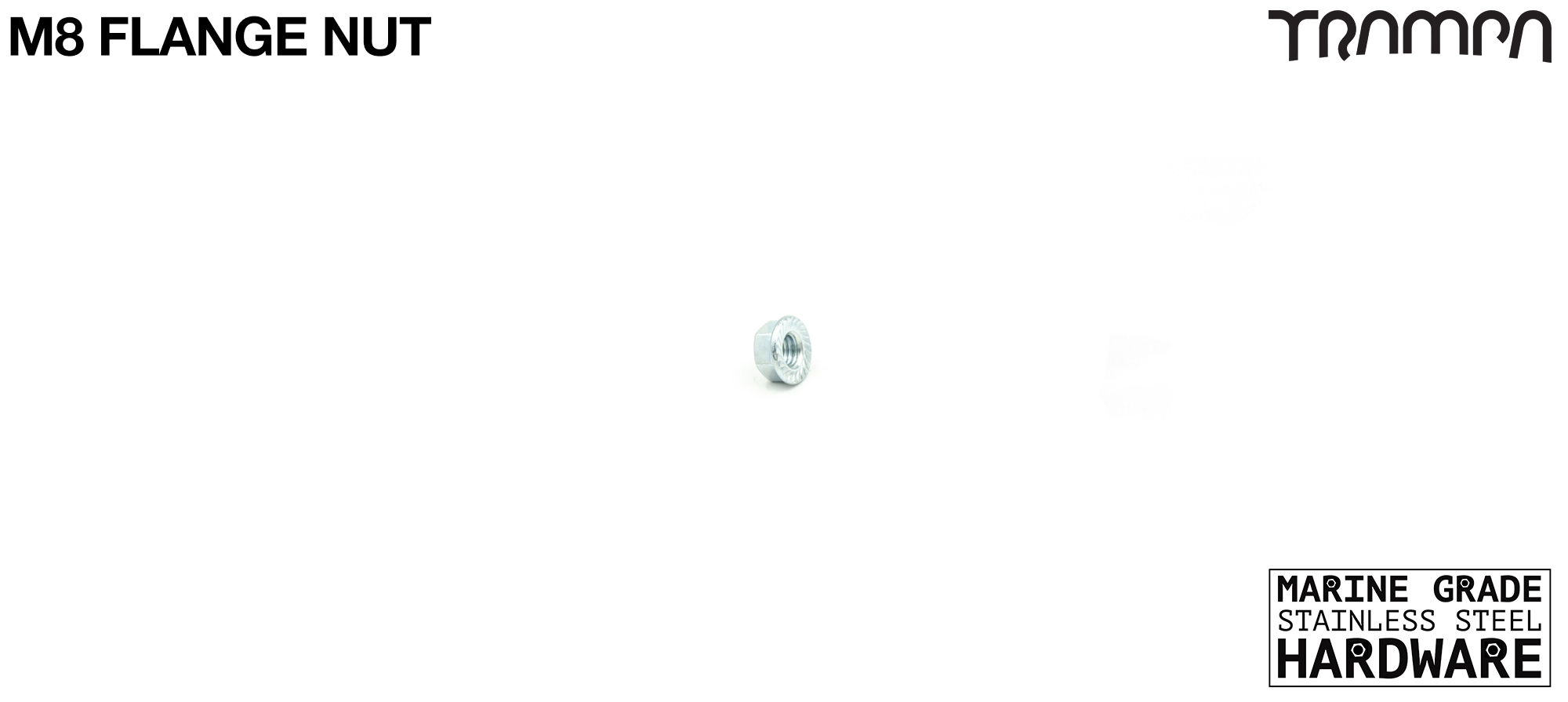

M8 NUT - Flanged & Serated A2 Steel - Marine Grade Stainless steel Nylock Nut

M8 Flanged Scerated Nikle plated Steel nut

M8 NUT - Flanged & Serated A2 Steel - Marine Grade Stainless steel Nylock Nut

M8 Flanged Scerated Nikle plated Steel nut

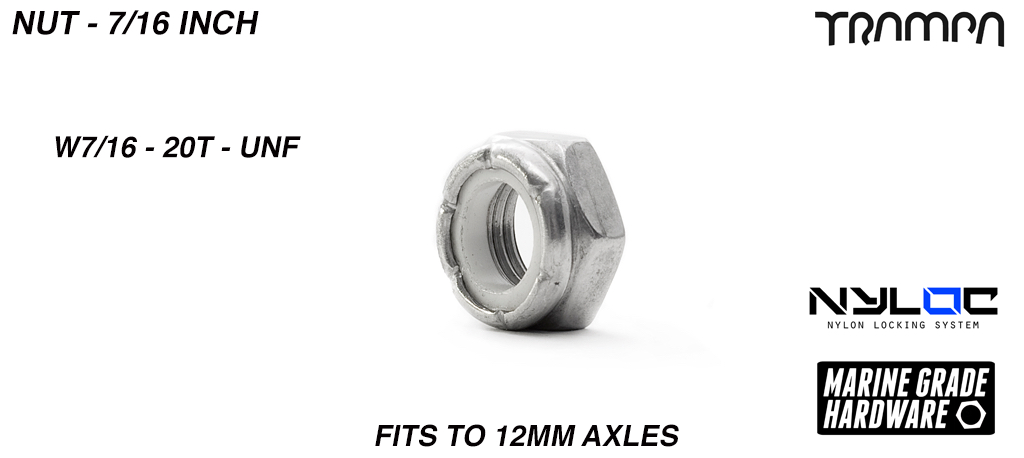

7/16ths Nut - Marine Grade Stainless steel Nylock Axle HALF nut (W7/16-20T UNF) - Fits to 12mm Axles

This very special 7/16_^ths of an inch Marine Grade Stainless steel Nyloc HALF NUT is custom made specially to fit the TRAMPA products. Half nut means - half as the size of a regular nut, so half the size = half the weight of a normal nut.. By using Half nuts on the axles reduces the over all length of the axle & kingpin therefore further reducing weight in the Truck! A few Grams here & a few grams there soon adds up & makes all the difference to the total Truck & consequently deck weight, specially in critical areas of the deck such as the wheels area, where a few grams makes all the difference...

This very special 3/8_^ths of an inch Marine Grade Stainless steel Nylock Half Nut official factory measurements are  W7/16 - 20T - UNF. This Nut is used to hold the wheels onto the axles of the Spring Trucks fitted with 12mm axles. The Nut is fitted as standard with the world renowned NYLOC System. The Nyloc "locks the Nut onto the Bolt" eliminating vibration, keeping your nuts tighter for longer!

Use a 16mm or 5/8th_^ths of an Inch spanner to tighten / loosen the Nut onto the Axle or Kingpin. Do not overtighten the nut & make sure the wheel can spin freely but does not rattle & do not crush your bearings. Being Marine Grade Stainless Steel this nut will not rust you! Always ensure all ur nuts are tight before you ride!

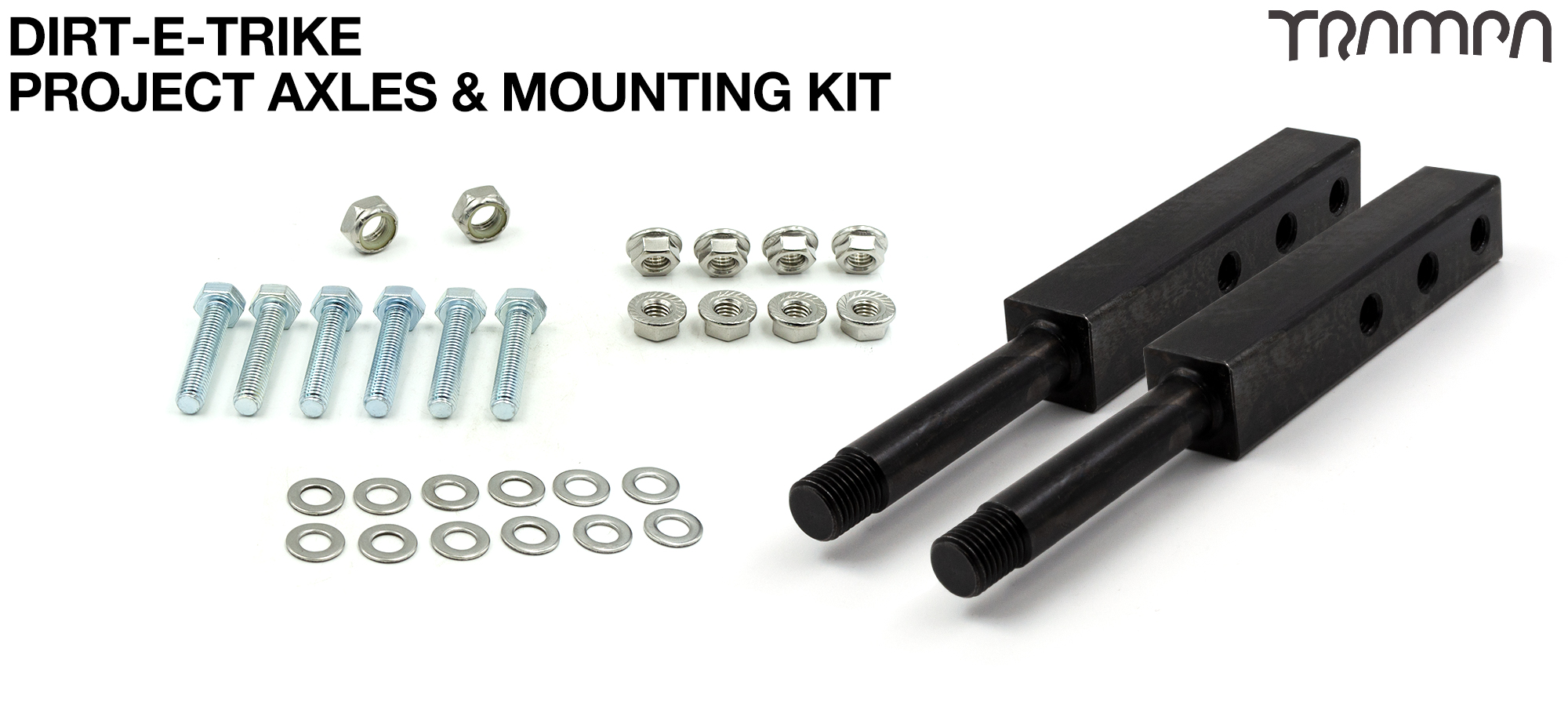

19.5mm Cr-Mo BOX AXLE - 12mm

Everybody knows that TRAMPA's amazing equipment is perfect for so many other products & projects other than Electric Mountainboarding & anything from Go-Karts, Drift Trikes, Buggies, Robots have all been made here & there is so much more going on behind the scenes... Its not just the Electric Mountainboarding scene anymore, & as consequence we have become all about modular connect ability, bringing solutions to our own conundrums whilst working alongside lots of other creative individuals or University Teams & even Global companies, & so we realised creating this special 'Fit anywhere AXLE' would be the resolve for many peoples projects & bring so much more help to so many others projects that we have found ourselves involved with....

And so TRAMPA's new 'fit anywhere' 19.5mm TO 12mm Cr-Mo AXLES are compatible with the full range of TRAMPA's Motor Mounts, Drives & Wheels, then Combined with our MOTORS & a VESC 6, the performance is guaranteed & getting your project rolling couldn't be easier!

This 'Fit Anywhere Axle' measures 19.5 x 19.5mm & has been specifically made to fit easily inside 25x25x2.5mm box section. If you are creative & have access to a welding machine you can pretty much make anything from 25mm Steel Box section & then installed with our '19.5mm Fit Anywhere Axle' makes it kind of like a giant Mechano set!

The Axle has 3x 'M8 Tapped holes' in its body to allow for a range of easy mounting options. You will need to drill corresponding connecting holes in the 25mm Box section in order to weld or to be able to securely fit the axle with a BOLT KIT.

Other mounting options could include being bolted to sheet material or being welded.

Share your project with us on instagram @TRAMPABOARDS

25x25x2.5mm - Mild Steel 25mm Box Section sold in 10cm Lengths - select in dropdown Below the length you want

Everybody knows that TRAMPA's amazing equipment is perfect for so many other products & projects other than Electric Mountainboarding & anything from Go-Karts, Drift Trikes, Buggies, Robots have all been made here & there is so much more going on behind the scenes... Its not just the Electric Mountainboarding scene anymore, & as consequence we have become all about modular connect ability, bringing solutions to our own conundrums whilst working alongside lots of other creative individuals or University Teams & even Global companies, & so we realised creating this special 'Fit anywhere AXLE' would be the resolve for many peoples projects & bring so much more help to so many others projects that we have found ourselves involved with....

And so TRAMPA's new 'fit anywhere' 19.5mm to 12mm Cr-Mo AXLES are compatible with the full range of TRAMPA's Motor Mounts, Drives & Wheels, then Combined with our MOTORS & a VESC 6, the performance is guaranteed & getting your project rolling couldn't be easier!

This 'Fit Anywhere Axle' measures 19.5 x 19.5mm & has been specifically made to fit easily inside 25x25x2.5mm box section. If you are creative & have access to a welding machine you can pretty much make anything from 25mm Steel Box section & then installed with our '19.5mm Fit Anywhere Axle' makes it kind of like a giant Mechano set! You can purchase some lengths of 25mm Box section on this page, please select from the drop down menus below what length you want, we charge £1 per 10cm & always give you more than you ask for.

The Axle has 3x 'M8 Threaded holes' in its body to allow for a range of easy screw in mounting options. You will need to drill corresponding connecting holes in the 25mm Box section in order to weld or to be able to securely fit the axle with a BOLT KIT. The holes should be 20mm apart.

Other mounting options could include being bolted to sheet material or being welded.

Share your project with us on instagram @TRAMPABOARDS

30x30x2.5mm - Mild Steel 25mm Box Section sold in 10cm Lengths - select in dropdown Below the length you want

Everybody knows that TRAMPA's amazing equipment is perfect for so many other products & projects other than Electric Mountainboarding & anything from Go-Karts, Drift Trikes, Buggies, Robots have all been made here & there is so much more going on behind the scenes... Its not just the Electric Mountainboarding scene anymore, & as consequence we have become all about modular connect ability, bringing solutions to our own conundrums whilst working alongside lots of other creative individuals or University Teams & even Global companies, & so we realised creating this special 'Fit anywhere AXLE' would be the resolve for many peoples projects & bring so much more help to so many others projects that we have found ourselves involved with....

And so TRAMPA's new 'fit anywhere' 19.5mm to 12mm Cr-Mo AXLES are compatible with the full range of TRAMPA's Motor Mounts, Drives & Wheels, then Combined with our MOTORS & a VESC 6, the performance is guaranteed & getting your project rolling couldn't be easier!

This 'Fit Anywhere Axle' measures 19.5 x 19.5mm & has been specifically made to fit easily inside 25x25x2.5mm box section. If you are creative & have access to a welding machine you can pretty much make anything from 25mm Steel Box section & then installed with our '19.5mm Fit Anywhere Axle' makes it kind of like a giant Mechano set! You can purchase some lengths of 25mm Box section on this page, please select from the drop down menus below what length you want, we charge £1 per 10cm & always give you more than you ask for.

The Axle has 3x 'M8 Threaded holes' in its body to allow for a range of easy screw in mounting options. You will need to drill corresponding connecting holes in the 25mm Box section in order to weld or to be able to securely fit the axle with a BOLT KIT. The holes should be 20mm apart.

Other mounting options could include being bolted to sheet material or being welded.

Share your project with us on instagram @TRAMPABOARDS

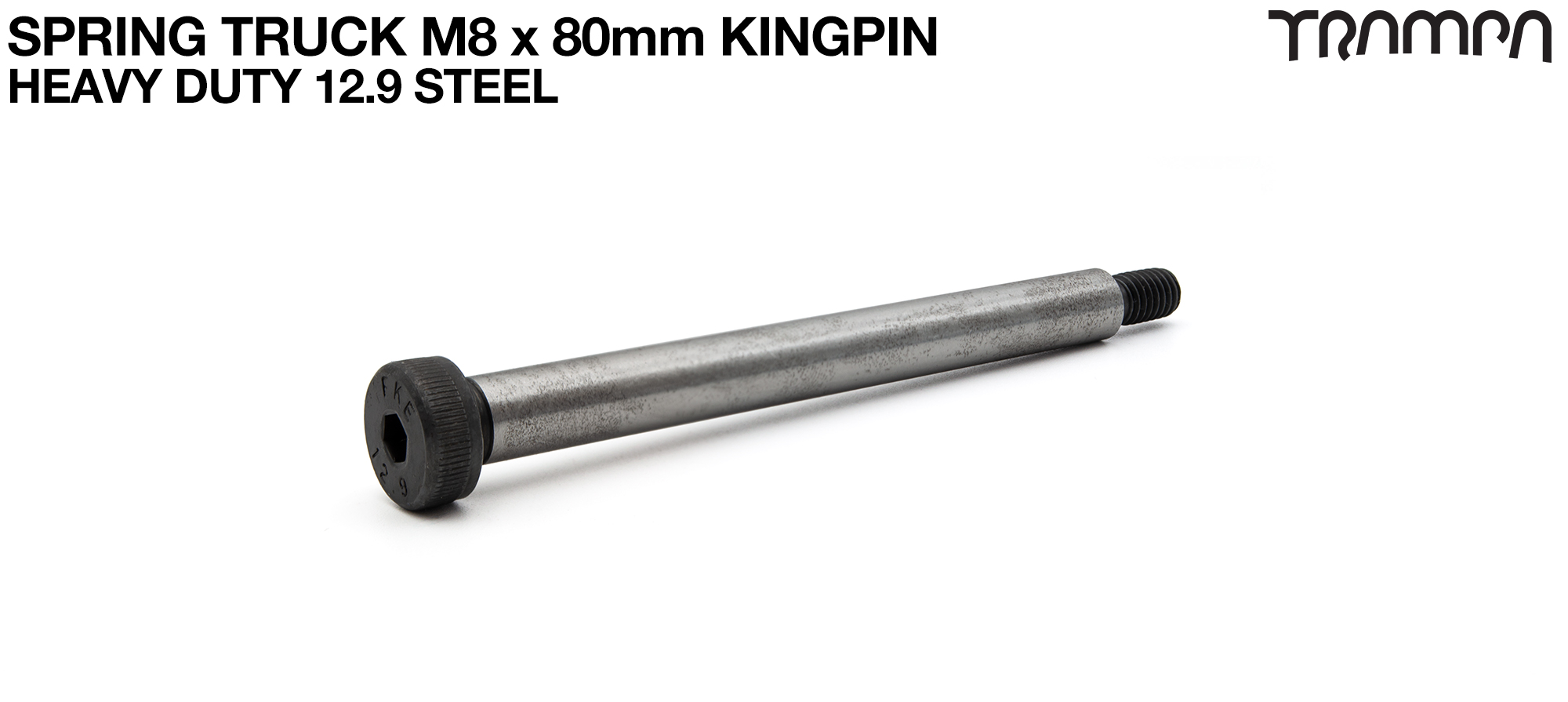

STEEL Kingpin M6x 8mm x 80mm for Spring Truck - Heavy Duty 12.9 Steel

This M8 x 80mm STAINLESS STEEL Spring Truck Kingpin is used to connect the Hanger & the Baseplate on any of TRAMPA's Spring Trucks.

Using high quality metals & sizing down to a 8mm Kingpin, we have managed to save loads of weight whilst retaining all the strength necessary for the job!

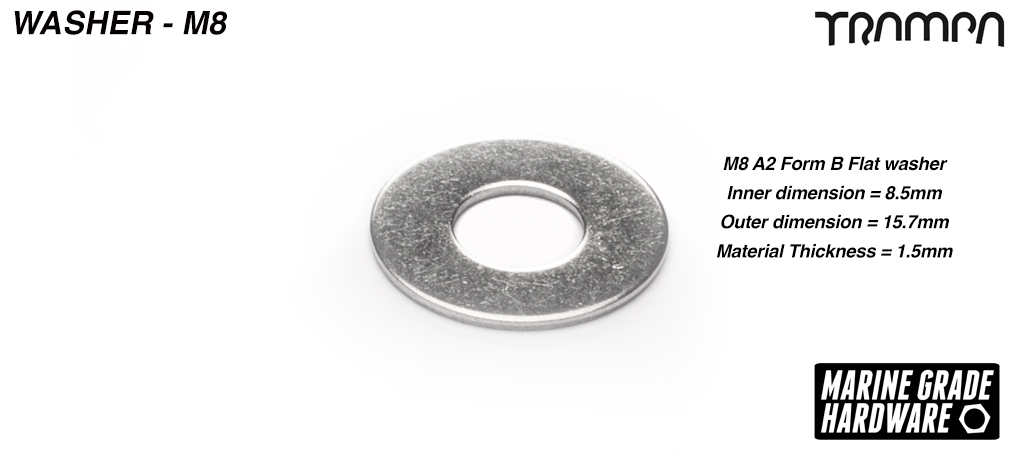

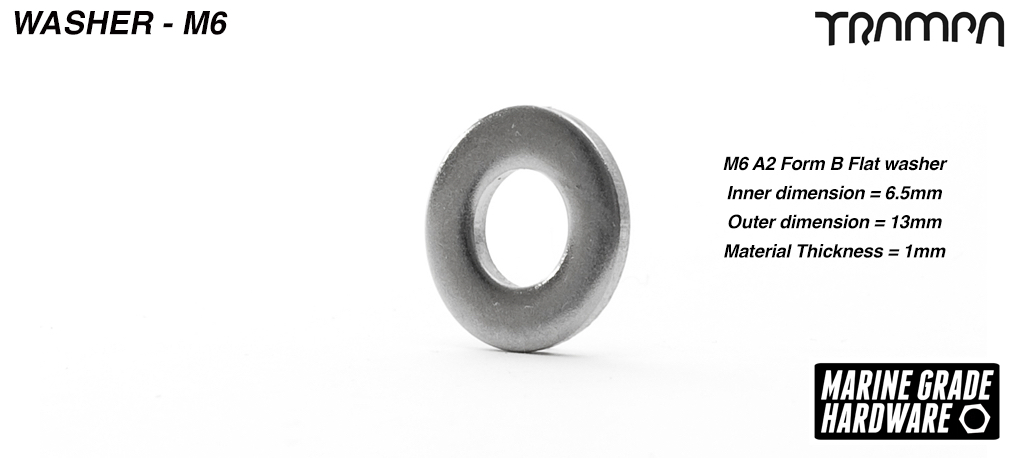

This M8 x 80mm Kingpin uses an 8mm Washer to support the busing from the outside & a 6mm washer to protect the bushing on the inside side & connects into an M6 Nut. You'll need a 4mm Allen key to hold the Kingpin & a 10mm spanner to tighten/loosen your M6 Kingpin Nut.

This Kingpin pushes through plastic bushings before being placed into position in the Truck System. The Plastic bushings allow the metal parts (Hanger & Baseplate) to move freely inside each other without allowing the metal parts to touch or wear out.

The plastic bushings will wear out over time & use & will eventually perish & need replacing. SO, make sure your Bushings are always in good working order after riding riding or when upgrading your Kingpin, it might be time to replace them too due to the unavoidable wear & tear of moving mountainboard parts.

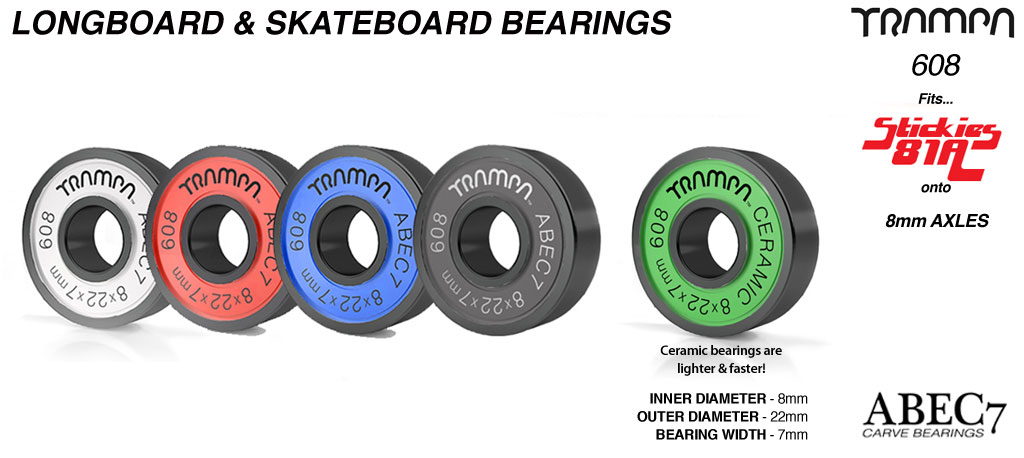

Longboard & Skateboard Bearings (8 x 22 x 7mm) Red Black Blue White or GREEN Ceramic sidewalls ABEC 7 608

TRAMPA's Longboard bearings will fit to all classic Longboard & Skateboard Wheels.

TRAMPA's Skate sized 608 Bearing (8 x 22 x 7mm) is internationally known as 608 2RS Longboard Bearing or Skateboard Bearing. It is the High Precision stock choice of bearing supplied with all TRAMPABOARDS that use 8mm Axles.

TRAMPA's 608 Skate Bearing has been polished to a an above genuine ABEC 7 quality rating & offers fantastic performance to the user. This Bearing will spin very fast for prolonged periods & it with regular servicing & a few drops of Speed Cream every now & then will last you a very long time. too. The internal Ball Bearings are mounted in a stainless steel raceway & are coated in very fine grease similar to the properties of Speed Cream.

As with all of TRAMPA's Bearings this Longboard Bearing has been fitted with Friction Free (contact-less) Removable Shields making servicing really easy. To Service your Bearings use a sharp knife or 'Pick' to carefully take out the Removable Sleeves from the bearing & clean/soak the bearings in a pot of Petrol or Thinners. Once clean, dry thoroughly & add a few drops of Speed Cream. A few drops is more than enough so don't go pouring loads in, the oil just needs spreading over all of the surfaces so pop them on the axle & give them a spin to spread the cream evenly & only add 1 more drop of Speed cream if necessary. Remember to wipe up any excess cream spinning out of your bearings onto your wheels as this will attract dust & dirt looking messy in turn.

& add a few drops of Speed Cream. A few drops is more than enough so don't go pouring loads in, the oil just needs spreading over all of the surfaces so pop them on the axle & give them a spin to spread the cream evenly & only add 1 more drop of Speed cream if necessary. Remember to wipe up any excess cream spinning out of your bearings onto your wheels as this will attract dust & dirt looking messy in turn.

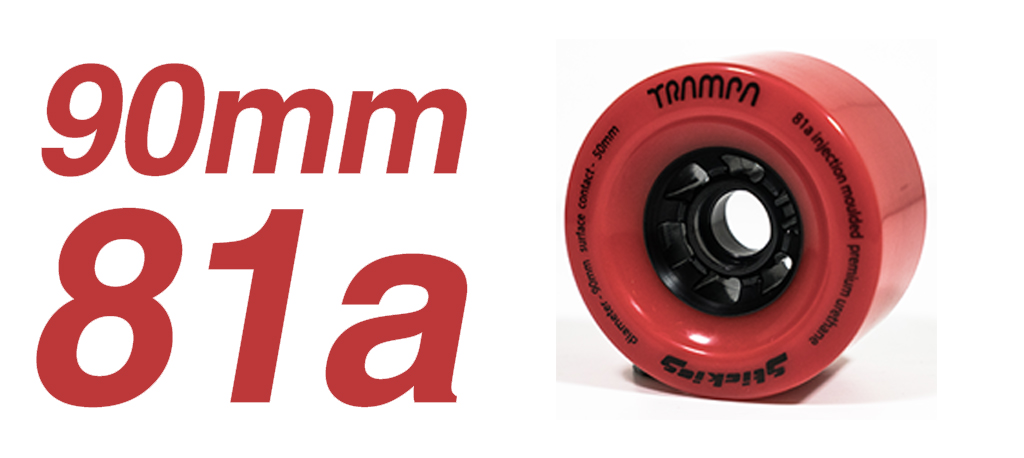

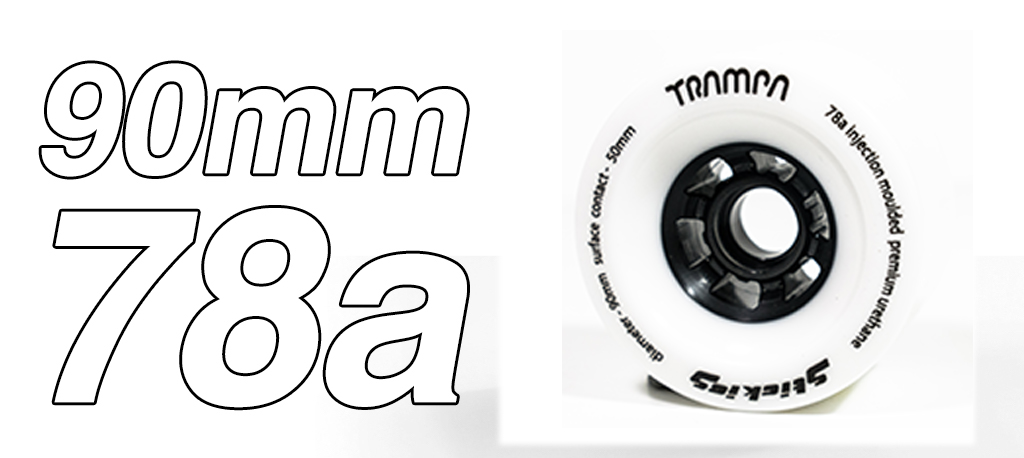

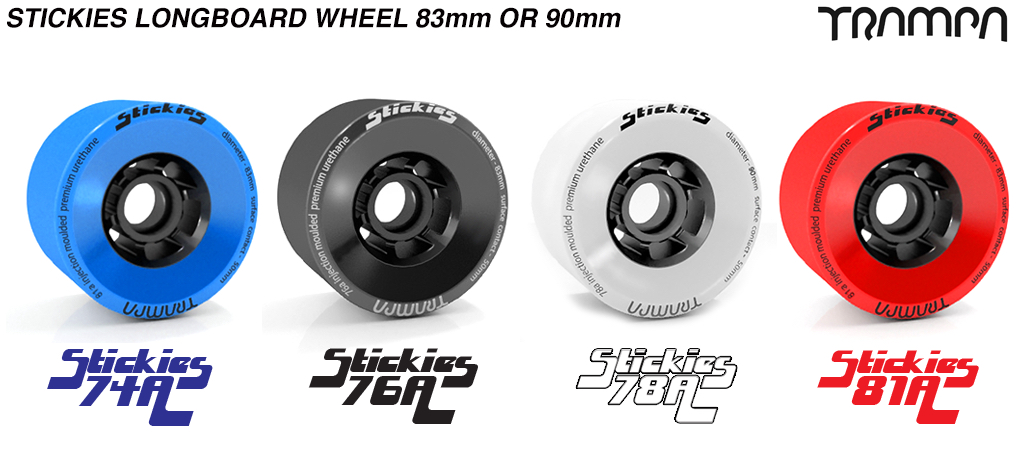

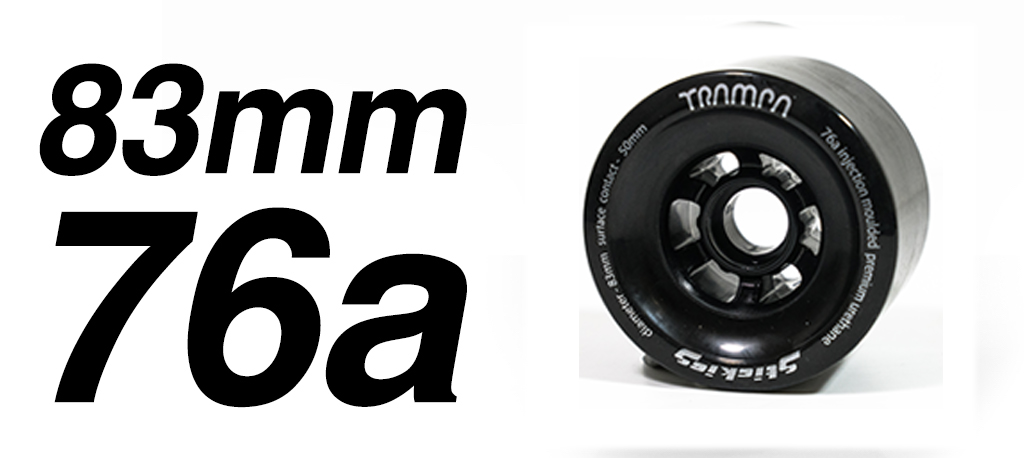

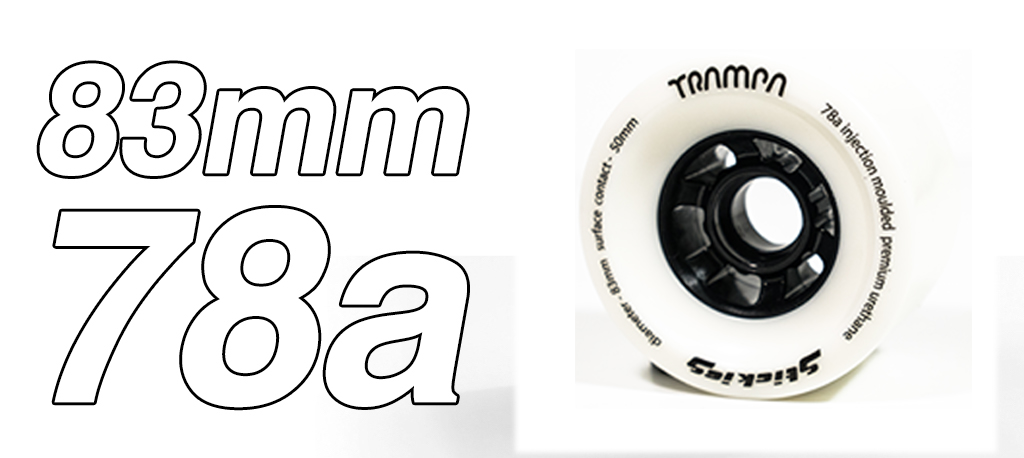

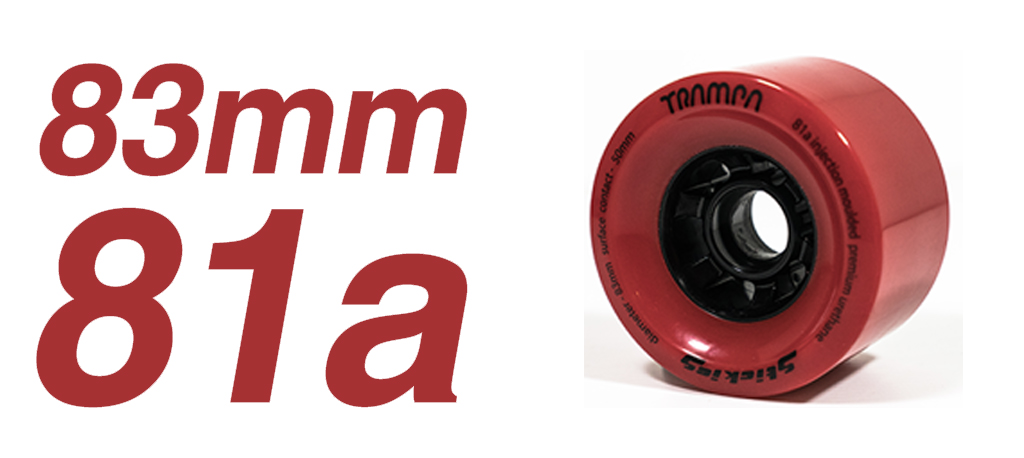

STICKIES Longboard & Street Carver Wheel Super High Rebound 83 x 52mm

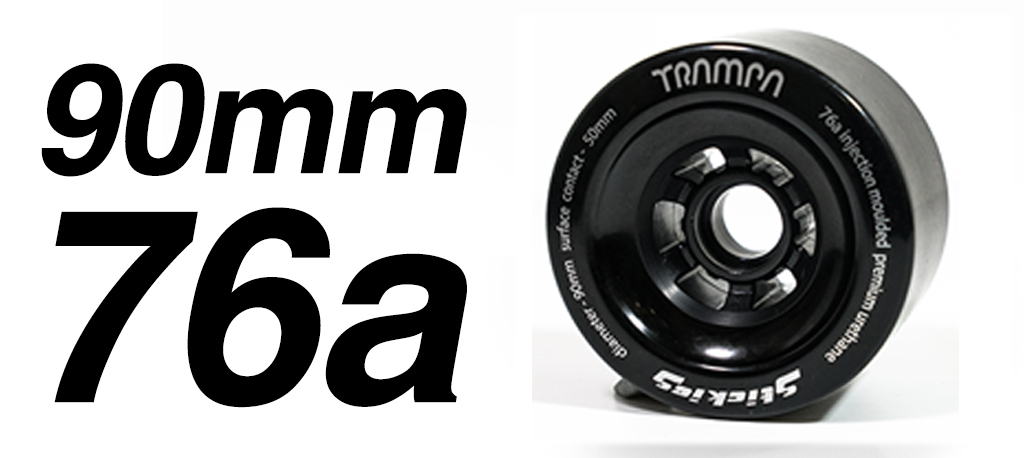

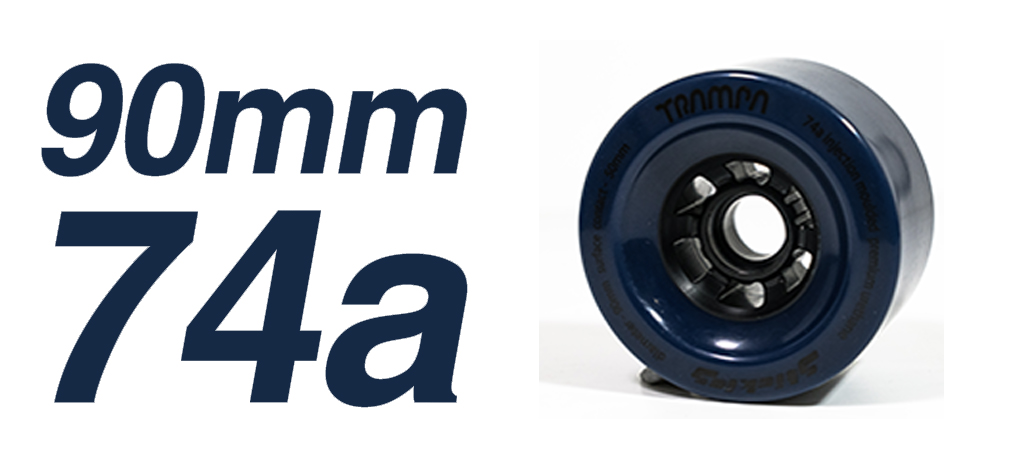

TRAMPA's incredible range of STICKIES Longboard Wheels have taken the world of Longboarding by storm! Produced using the highest grade of Ultra Premium Urethane, and available in either 83 or 90mm size options with a varying range of suitably colour co-ordinatied Urethane Hardnesses, the variety compliments all the different types of rider, covering all the different aspects of street riding. You will be pleased to learn STICKIES Longboard Wheels will fit to ALL Longboard, Street-board & Skateboard Trucks using 8 or 9.525mm Axles.

The re-enforced VENTED CORE of the STICKIES Wheel houses a Center-set bearing position. For those that don't know this means the bearings are housed centrally within the wheel. Being center-set ensure an even wear rate to the wheel ensuring maximum grip at all times, whilst guaranteeing a balanced "high speed spin-rate", thus making turning/sliding as predictable as possible! Not only does the vented core reduce weight, but it also increases airflow around the Bearings ensuring lower operating temperatures when running at high speeds...

The Vented Core also has an extra application... The Venting holes can be used in conjunction with a centering ring & some M4x40mm Socket Capped Bolts to lock into position, either a 33 or 37 Tooth Slave Wheel, to which the complete assembly can be connected to many applications using an electric motor, including the new TRAMPA Electric Longboards & Electric Street-Carver boards as well as many other products due onto the market soon!

Smothering the Vented Core of the STICKIES Longboard wheel is thick PREMIUM URETHANE. Choosing STICKIES will enable you to Carve & Turn like you have only ever dreamed of before, especially when mounted to the new TRAMPA Mini Spring Trucks which happen to turn & carve like nothing else! STIKIES Wheels will also fit to the new 12FIFTIES Trucks and all 8mm Longboard trucks on the Market.

The edges of all the STICKIES wheels are beautifully rounded allowing smooth transitional turns, whilst helping to avoid chipping & cracks at the same time. The rounded edge of the STICKIES wheel gives an overall contact surface of 50mm! Orbiting the outer edge of the BLUE STICKIES WHEEL is a coordinating BLACK TRAMPA logo.

STICKIES will accept regular skate size 608 2RS (8 x 22 x 7mm) bearings & made special for the TRAMPA Mini Spring Trucks, the R6 2RS (9.525 x 22,225 x 7.14mm) Bearings. All of TRAMPA's Longboard/Streetboard bearings are ABEC 7-9 rated & are designed for prolonged high speed use.
