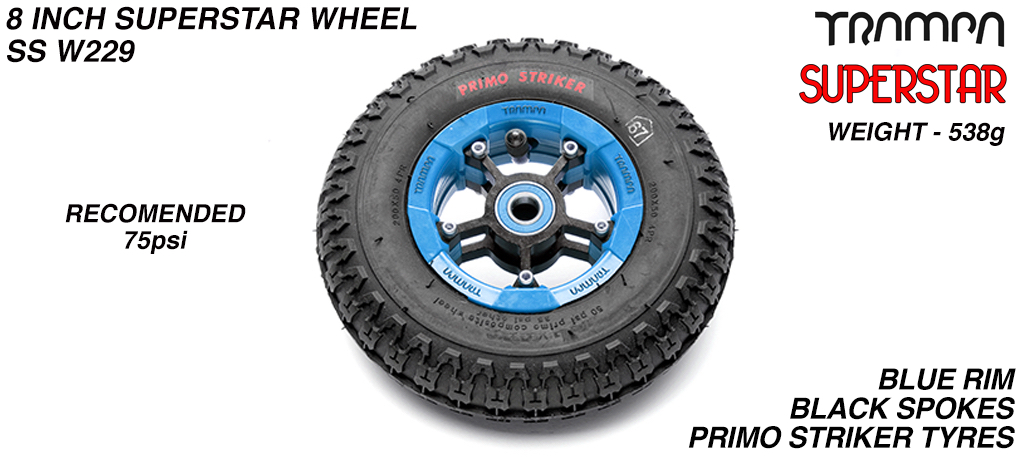

TRAMPA's SUPERSTAR wheel is a beautiful & technically designed masterpiece, created for those who insist on fitting only the finest of equipment.
The split Rim of the SUPERSTAR hub has been manufactured using original DuPont & the very latest in precision injection molding machinary (only the best will do!), whilst the Extruded Aluminum Spokes are T6 Heat-treated (T6 heat treating makes the extruded aluminum exceptionally strong), Anodised & finally CNC precision milled to fit the TRAMPA Bearings perfectly.
Separated & supported by a chunky nylon Spoke Support Spacer, the Heat-treated spokes simply push into the rim during assembly. The SUPERSTARS construction is held together with Marine Grade Stainless steel fixings M4x40mm. This incredible top quality combination makes all the difference to the user compared to the competition as the SUPERSTAR hub will not fail on you. It can handle incredibly high inflation pressures.... It is what we believe to be the best/strongest 3.75 Inch hub on the market today!
The SUPERSTAR wheel is available in hundreds of different Rim, Spoke & 8 Inch Tyre colour combinations, its difficult to choose your favorite, but you can have your SUPERSTAR wheels with 8 inch tyres in any combination you like...
Constructed (as expected from TRAMPA) using only the finest fixings available which means all TRAMPA parts, including these wheels, are constructed using Marine grade Stainless steel that have all been brushed with Blue locking paste to ensure the most secure of fixings. All Nuts used also have a Nylock sleeve to ensure double quality & effective secure fixing! A 3mm Alan Key & a 7mm spanner are all the tools you need to construct or service your hubs.
Trampa’s own top quality steel Bearings, genuine ABEC 5 rated, fit perfectly into the CNC precision milled spokes, preventing any wobble & enabling the hub the fastest spin rate possible. When purchasing bearings with the hubs the bearings can be purchased for as little as £1.25 each making a £5 saving per set of 8.
Along with many other wheeled applications, the SUPERSTAR hub will fit to ALL other brands of mountainboards on the market including MBS SCRUB & KHEO. Basically the SUPERSTAR wheels will fit to anything with a 9.52mm (imperial), 10mm or 12mm axle. There are conversion spacers available for you to convert your existing 12mm bearings to work on 9.55mm skate axles (7/16ths Imperial) or 10mm (metric) scooter axles (see associated parts for details).
Due to the fantastic design & the use of top quality materials in these hubs, the finished product has ended up being exceptionally strong. This extra strength allows the rider to inflate their tyres well beyond normal recommended pressures, which in turn increases the top end roll speeds. We shouldn’t go recommending that you go over inflating your tires but if you are ever going to do it you will be safe in the knowledge that these hubs can handle the pressure that other hubs cant. During testing it was common for our Crash Test Dummis (I mean Trampa Team riders) to inflate as high as 100psi, and in some cases (Joel!) well beyond!!
TRAMPA's M4 x 40mm Socket Capped Bolt is made using A4 Marine Grade Stainless Steel. This very special Bolt is specifically made for TRAMPA & is used to assemble the TRAMPA SUPERSTAR HUBS. The socket capped head of the Bolt screws neatly though the Spokes & into the fixing point in the Rim of the SUPERSTAR HUB eventually screwing into the M4 nut on the other side easly.
Using Marine Grade Stainless Steel, means these Bolts will never rust on you! They can cope with the most harsh of weather conditions & they laugh in the face of sandy/salty beaches or muddy freeride tracks, which do turn other manufacturers Nuts & Bolts into corrosive rusting wrecks! As well as being Non Corrosive all of the TRAMPA Bolts are diped in BLUE THREAD LOCKING PASTE to ensure an extra strong secure fix between the Nut & the Bolt.
USED FOR CONNECTING:
The CST PRIMO Inner Tube incorporates slightly thicker rubber into its manufacture process which means the tube is slightly heavier than alternatives but does allow the rider to inflate slightly higher. This extra thickness also gives some extra resistance to punctures, but punctures suck, so always carry a spare inner tube when you are riding as you never know when you might get one.
The PRIMO Tube uses a 90º Brass Inflation valve which will not rust on you & comes as you would expected with a plastic "anti dust" valve cap!
Introducing TRAMPA's M4 (4mm Shaft) A4 Marine Grade Stainless steel Nylock Nut. This Nylock Nut will fit to all M4 Bolts regardless of their length. This A4 Marine Grade Stainless Steel Nut will never rust on you! It is fitted with the world renowned NYLOCK System (Nylock is a nylon locking system where Nylon is pasted into the threads of the nut so that when the bolt is tightened into the nut the nylon grabs the thread of the bolt holding it locking it in the thread ensuring things do not vibrate loose or fall off when being ridden on rough terrain like that which a Mountain or Kiteboard endures. The NYLOCK thread locking security System is fitted as standard to all TRAMPA Nuts.
This Nut is used to fix to tighten to the M4 Socket Capped Bolts that hold the HYPA & SUPERSTAR hubs together. To fit the nuts M4 use an 8mm spanner or 8mm Ratchet Socket to turn the Nut onto the Bolt whilst holding the bolt with a 3mm Allen Key. Always ensure your Nuts & Bolts are tight before you ride!
TRAMPA's SUPERSTAR Hub is a technically designed super-strength masterpiece of circular lushness, created for those who insist on fitting only the very best equipment! SUPERSTAR Hubs are available in loads of different Rim & Spoke colour combinations, its almost impossible to decide the combination you like the most!
The SUPERSTAR hub handles the highest inflation pressures on the market, which in turn increases roll speeds giving the rider the adavantage over the competiton, making them perfect for the best riders, i mean the insane! The SUPERSTAR Rims are produced using original DuPont materials (The Best) whilst the Spokes use Extruded Aluminum thats T6 Heat treated (Super Strength Aero-grade quality) which is all constructed using A4 (Marine Grade) Stainless Steel Nuts & Bolts. Total & absolute product perfection!
SUPERSTAR Hubs are compatible with all known 8 inch tyres on the market today! Disk Brakes & Drive Gears for Electric motors can also be fitted to these amazing SUPERSTAR wheels... Watch this space for Hot NEWS on E Trampa...
Bearings can be purchased at a discounted price when purchased with Hubs. 2x Bearings cost only £2.50 = £10 per set of 8 making a £5 saving per set!
TRAMPA SPOKES fit all SUPERSTAR & MEGASTAR Hubs. TRAMPA's Spokes are produced using the finest 6061 'Aero-Grade' Aluminum, which to maximise strength & performance are produced with the use of an Extrusion Die, which means TRAMPA spokes are made in one continuous piece before being sliced like bread to the required thickness. Before being sliced the extruded profile is T6 Heat Treated making the resulting Alloy extremely strong.
Once sliced, the Raw Spokes are bead polished which not only gives a top quality finish but also removes all & any sharp edges, before then being sent away to CNC machine to precisely mill out the 28mm O.D. bearing housing. Finally the spokes are sent to the Anodisers to have the relevant striking colours added for top surface protection.
This is the TRAMPA SUPERSTAR Spoke Support Spacer. It is used to gain extra strength for the SUPERSTAR wheel design by adding support to the Aluminum Spokes when the wheel is being used under high inflated pressures...
Precision injection moulded, using original DuPont materials, this Spacer provides essential support for the Spokes in the Superstar hubs. There is a Deep Shelf on the Rim of the Spacer which pushes into the internal side of the Spoke, positioning the Spacer/spoke perfectly for assembly. The thick plastic ensures a very strong support platform maximising Bearing support & spin rate always....
Ensure all your nuts & bolts are tight before riding!!
PRIMO's 8 Inch STRIKER Tyre design brief was styled towards fast riding on hard packed dirt surfaces. It is made using a hard rubber compound with a Wide Center Bead to help achieve maximum rolling speeds whilst the close cut grip pattern around the sides of the tyre gives loads of grip on all kinds of changable terrain's. Using Harder Rubber makes the STRIKER Tyre very fast whilst hard-wearing, The PRIMO STRIKER is a great Tyre option for riding on any Solid surfaces from dusty dirt tracks to hard packed asphalt. The STRIKER tyre will fit to all known Hubs that are commonly used for Mountainboarding & Kiteboarding.
Incorporated into the rubber of the tyre are 2x 3.75 Inch wide Steel Bands running around the inner rims. Regular sized Threads (TPI) tie the Steel bands together giving the PRIMO STRIKER the strength & structure to be inflated up to & well beyond the recommended factory inflation pressures. The more you inflate your Tyres the faster you will roll! If you over inflate the Tyres it is possible they will explode which may cause you serious injury! The official maximum inflation pressure set by the factory for the ALPHA Tyre is 50psi, but the ALPHA Tyres are made so well & the TRAMPA Hubs are so strong that our Crash test Dummies (I mean Team Riders) have been known to inflate these Tyres well beyond their recommended pressures with no problems to mention. If you do decide to go beyond the max inflation pressure ensure your nuts & bolts are tight & deflate back to a regular pressure after use.
TRAMPA's SUPERSTAR Wheel is a technically designed super strengthened masterpiece of circular lushness! It is created for those who insist on fitting only the very best equipment! The SUPERSTAR handles the highest inflation pressures of any 8 inch wheel on the market, increasing roll speeds, making them perfect for the insane! SUPERSTAR Hubs are available in loads of different Rim & Spoke combinations its difficult to decide the combination you like the most!
Top Quality Plastic Injection machinery & original DuPont materials (DuPont are the Best) are used to create the high-tech Rim, whilst the Spokes use Extruded 6061 Aluminum that's been T6 Heat treated (Super Strengthened Aero-grade quality) which is all constructed using A4 (Marine Grade) Stainless Steel Nuts & Bolts. Total & absolute product perfection!
SUPERSTAR Hubs are compatible with all known 8 inch tyres on the marke! Disk Brakes & Drive Gears for Electric motors can also be fitted to these amazing SUPERSTAR wheels... Watch this space for Hot NEWS on E-TRAMPA... Bearings can be purchased at a discounted price when purchased with a wheel. 2x Bearings cost only £2.50 = £10 per set of 8 making a £10 saving per set!
