How to put a wheel on an Infinity or Vertigo truck

How to put a wheel on an Ultimate Truck

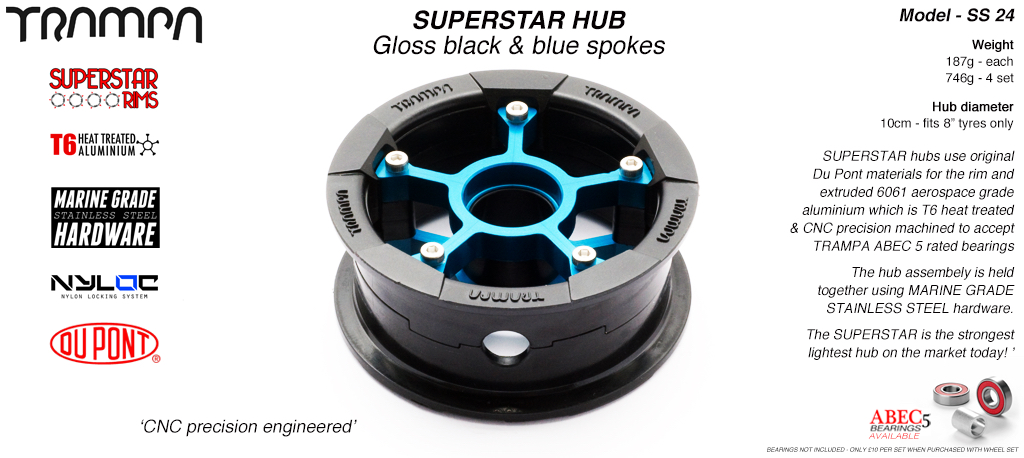

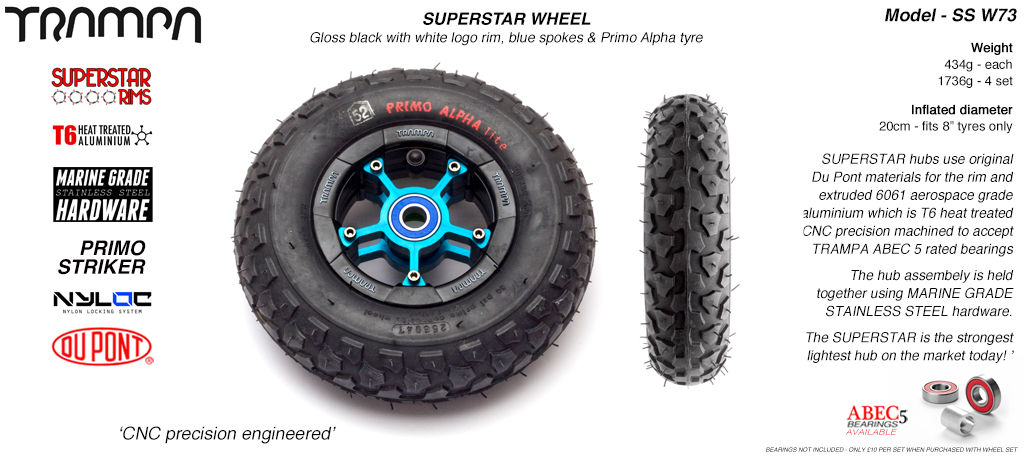

TRAMPA's SUPERSTAR wheel is a beautiful & technically designed masterpiece, created for those who insist on fitting only the finest of equipment.

The split Rim of the SUPERSTAR hub has been manufactured using original DuPont & the very latest in precision injection molding machinary (only the best will do!), whilst the Extruded Aluminum Spokes are T6 Heat-treated (T6 heat treating makes the extruded aluminum exceptionally strong), Anodised & finally CNC precision milled to fit the TRAMPA Bearings perfectly.

Separated & supported by a chunky nylon Spoke Support Spacer, the Heat-treated spokes simply push into the rim during assembly. The SUPERSTARS construction is held together with Marine Grade Stainless steel fixings  M4x40mm. This incredible top quality combination makes all the difference to the user compared to the competition as the SUPERSTAR hub will not fail on you. It can handle incredibly high inflation pressures.... It is what we believe to be the best/strongest 3.75 Inch hub on the market today!

The SUPERSTAR wheel is available in hundreds of different Rim, Spoke & 8 Inch Tyre colour combinations, its difficult to choose your favorite, but you can have your SUPERSTAR wheels with 8 inch tyres in any combination you like...

Constructed (as expected from TRAMPA) using only the finest fixings available which means all TRAMPA parts, including these wheels, are constructed using Marine grade Stainless steel that have all been brushed with Blue locking paste to ensure the most secure of fixings. All Nuts used also have a Nylock sleeve to ensure double quality & effective secure fixing! A 3mm Alan Key & a 7mm spanner are all the tools you need to construct or service your hubs.

Trampa’s own top quality steel Bearings, genuine ABEC 5 rated, fit perfectly into the CNC precision milled spokes, preventing any wobble & enabling the hub the fastest spin rate possible. When purchasing bearings with the hubs the bearings can be purchased for as little as £1.25 each making a £5 saving per set of 8.

Along with many other wheeled applications, the SUPERSTAR hub will fit to ALL other brands of mountainboards on the market including MBS SCRUB & KHEO. Basically the SUPERSTAR wheels will fit to anything with a 9.52mm (imperial), 10mm or 12mm axle. There are conversion spacers available for you to convert your existing 12mm bearings to work on 9.55mm skate axles (7/16ths Imperial) or 10mm (metric) scooter axles (see associated parts for details).

Due to the fantastic design & the use of top quality materials in these hubs, the finished product has ended up being exceptionally strong. This extra strength allows the rider to inflate their tyres well beyond normal recommended pressures, which in turn increases the top end roll speeds. We shouldn’t go recommending that you go over inflating your tires but if you are ever going to do it you will be safe in the knowledge that these hubs can handle the pressure that other hubs cant. During testing it was common for our Crash Test Dummis (I mean Trampa Team riders) to inflate as high as 100psi, and in some cases (Joel!) well beyond!!

M4 x 40mm Socket Capped Allen-Key Bolt - Marine Grade Stainless steel with locking paste

TRAMPA's M4 x 40mm Socket Capped Bolt is made using A4 Marine Grade Stainless Steel. This very special Bolt is specifically made for TRAMPA & is used to assemble the TRAMPA SUPERSTAR HUBS. The socket capped head of the Bolt screws neatly though the Spokes & into the fixing point in the Rim of the SUPERSTAR HUB eventually screwing  into the M4 nut on the other side easly.

Using Marine Grade Stainless Steel, means these Bolts will never rust on you! They can cope with the most harsh of weather conditions & they laugh in the face of sandy/salty beaches or muddy freeride tracks, which do turn other manufacturers Nuts & Bolts into corrosive rusting wrecks! As well as being Non Corrosive all of the TRAMPA Bolts are diped in  BLUE THREAD LOCKING PASTE to ensure an extra strong secure fix between the Nut & the Bolt.

USED FOR CONNECTING:

SUPERSTAR HUBS
MEGASTAR HUBS
PHATLADS HUBS

M4 Nyloc Nut - Marine Grade stainless steel Nylock Nut - Hub Nuts

Introducing TRAMPA's M4 (4mm Shaft) A4 Marine Grade Stainless steel Nylock Nut. This Nylock Nut will fit to all M4 Bolts regardless of their length. This A4 Marine Grade Stainless Steel Nut will never rust on you! It is fitted with the world renowned NYLOCK System (Nylock is a nylon locking system where Nylon is pasted into the threads of the nut so that when the bolt is tightened into the nut the nylon grabs the thread of the bolt holding it locking it in the thread ensuring things do not vibrate loose or fall off when being ridden on rough terrain like that which a Mountain or Kiteboard endures. The NYLOCK thread locking security System is fitted as standard to all TRAMPA Nuts.

This Nut is used to fix to tighten to the M4 Socket Capped Bolts that hold the HYPA & SUPERSTAR hubs together. To fit the nuts M4 use an 8mm spanner or  8mm Ratchet Socket to turn the Nut onto the Bolt whilst holding the bolt with a 3mm Allen Key. Always ensure your Nuts & Bolts are tight before you ride!

8 Inch Inner Tube PRIMO 8x2 inch 200x50mm - fits 3.75 inch Rims & 8 inch tyres

PRIMO's own 8 Inch Inner Tube has dimensions of 200mm (outer diameter) x 50mm (width) & will fit into all known 8 inch Tyres & ATB hubs on the market!

The CST PRIMO Inner Tube incorporates slightly thicker rubber into its manufacture process which means the tube is slightly heavier than alternatives but does allow the rider to inflate slightly higher. This extra thickness also gives some extra resistance to punctures, but punctures suck, so always carry a spare inner tube when you are riding as you never know when you might get one.

The PRIMO Tube uses a 90º Brass Inflation valve which will not rust on you & comes as you would expected with a plastic "anti dust" valve cap!

Genuine SUPERSTAR CENTER-SET Rim 3.75x 2 Inch fits all 3.75 Inch Tyres - Matt BLACK

TRAMPA's SUPERSTAR Hub is a technically designed super-strength masterpiece of circular lushness & has been created for those who insist on fitting only the very best equipment! SUPERSTAR Hubs are available in loads of different Rim & Spoke colour combinations, its almost impossible to decide the combination you like the most!

The SUPERSTAR hub handles the highest inflation pressures on the market, which in turn increases roll speeds giving the rider the advantage over the competition, making them perfect for the best riders, i mean the insane! SUPERSTAR Rims are produced using original 'DuPont' materials (the best), whilst the STAR SPOKES are made using a custom made mould to give us an Extruded Aluminum profile that gets T6 Heat treated (Super Strength Aero-grade quality) & then sliced to requirement.

The SUPERSTAR Hub/wheel is fully constructed using A4 (Marine Grade) Stainless Steel Nuts & Bolts. Total & absolute product perfection!

SUPERSTAR Hubs are compatible with any tyre that TRAMPA offers up to 8 inches in size!

Disk Brakes for steep free-ride riding & Drive Gears for Electric boards or Electric motors can also be fitted to these amazing SUPERSTAR wheels...

Bearings can be purchased at a discounted price when purchased with complete Hubs or wheels.

BLUE Anodised CLASSIC 5 SPOKE - Extruded T6 Aluminum Heat treated & CNC Precision milled fits all SUPERSTAR & MEGASTAR Wheels

TRAMPA SPOKES fit all SUPERSTAR & MEGASTAR Hubs. TRAMPA's Spokes are produced using the finest 6061 'Aero-Grade' Aluminum, which to maximise strength & performance are produced with the use of an Extrusion Die, which means TRAMPA spokes are made in one continuous piece before being sliced like bread to the required thickness. Before being sliced the extruded profile is T6 Heat Treated making the resulting Alloy extremely strong.

Once sliced the Raw Spokes are sent to the CNC machine to mill out the bearing housing perfectly. Before being anodised the spokes are bead polished which not only gives a top quality finish but also removes all & any sharp edges, then finally sent away to the Anodisers to have the relevant striking colours added for top surface protection.

Check your spoke support spacers, O-Rings and hardware are in good condition when changing spokes & ensure all of your nuts & bolts are tight before you ride!

CUSTOM Spoke Support spacer - Installing a Spoke Support Conversin Spacer allowsyou to fit SUPERSTAR or MEGASTAR hubs to 9.525mm & 8mm Axles such as Evolve, Boosted & many others

This is the TRAMPA SUPERSTAR Spoke Support Spacer. It is used to gain extra strength for the SUPERSTAR wheel design by adding support to the Aluminum Spokes when the wheel is being used under high inflated pressures...

Precision injection moulded, using original DuPont materials, this Spacer provides essential support for the Spokes in the Superstar hubs. There is a Deep Shelf on the Rim of the Spacer which pushes into the internal side of the Spoke, positioning the Spacer/spoke perfectly for assembly. The thick plastic ensures a very strong support platform maximising Bearing support & spin rate always....

Ensure all your nuts & bolts are tight before riding!!

PRIMO ALPHA 8 inch Tyre measure 3.75x 2x 8 Inch or 200x50mm with 3.75 inch Rim fits all 3.75 inch Hubs

The PRIMO ALPHA Lite tyre is a super light-weight Off-Road Tyre. Using just 2 PR of the finest grade rubber & incorporating a very high TPI under its skin combined together these secret details reduce weight considerably, making its reputation as the worlds best Off Road 8-inch Tyre! When inflated the PRIMO ALPHA Lite tyre measures 200x50mm. The Tyre incorporates a 3.75 inch Steel Band into the rim to hold everything in position & it slips onto the TRAMPA hubs perfectly. The ALPHA tyre will fit to all known hub Brands that are used for Mountainboarding & Kiteboarding.

Made from relatively softish rubber the ALPHA tyre gives fantastic grip. Its design incorporates a wide center bead to allow & maintain straight line speed, whist its surrounding edges are beautifully sculptured wide grooves that supply high levels of grip regardless of the terrain type. - This tyre really is great for all off road applications.

The more you inflate your Tyres the faster you will roll!  The official maximum inflation pressure set by the factory for the ALPHA Tyre is 50psi, but the ALPHA Tyres are made so well & the TRAMPA Hubs are so strong that our Crash test Dummies (I mean Team Riders) have been known to inflate these Tyres well beyond their recommended pressures with no problems to mention. Over inflating your tyres may lead to an explosion which could seriously injure you. If you do decide to go beyond the max inflation pressure ensure your nuts & bolts are tight & deflate back to a regular pressure after use.
