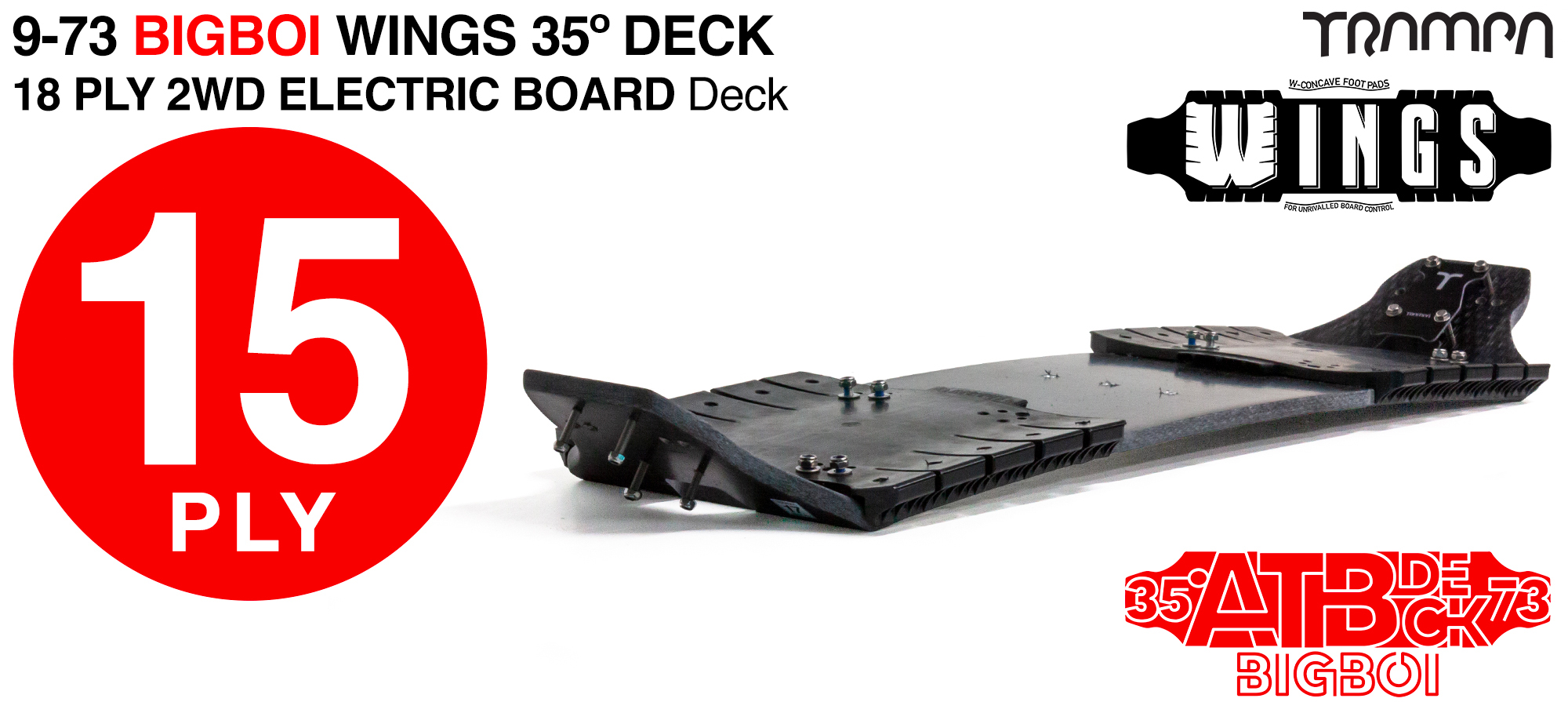

2wd Electric Mountainboard Deck - CUSTOM

Its your choice of Deck!! Taller riders, or riders with a long legs or riders who enjoy a wide stance, these riders should look to take take the 9/73 Deck fitted with WINGS. All other riders should take the 9/69 Deck fitted with Wings.

There are different flex Ply's in each both deck sizes to match the riders weight. The WINGS fix to the surface of the deck & allow the cables to be safely routed from the Monster Box, under the riders foot to the motors at the rear. The Wings are W Shape concave giving a comfortable feeling under-foot, they also increase the width of the deck from 9 to 10 inches...

• TRAMPA Decks can be used for everything from Big-Air & Free-ride to Electric & kite boarding.

TRAMPA's MOUNTAINBOARD DECKs have a fresh cut look over the original range of Mountainboard Decks. With a few simple modiciations to the cut out shape we have maxed out the stiffness of the shape as well as introduce the ability to be able to fit TRAMPA WINGS.

Whilst with the introduction of the 9/73 Deck Mountainboard deck has brought much relief to long legged riders! Produced from a complete new, it measures 4cm longer between the creases, in the foot stance area, which gives the taller riders or riders who love a wide stance all the space they need to spread their legs & finally ride comfy.

Both Decks can still used without WINGS if you do not wish to use them & as well as being used as a regular Mountainboard deck being ridden down a hill, the latest Mountain board shapes have been created more to perfect the fit with all of TRAMPA's incredible range of Motor Mounts, Battery boxes & Electrical products.

WINGS are an injection moulded riser pads that are screwed through & then secured into the surface of the TRAMPA Deck. The WINGS have a foot-hugging W-shaped concave surface, enhancing comfort under the foot & increasing Grip on the surface. Underneath houses an integrated cable routing channel to allow for safe un-interferred under-foot cable routing from the battery boxes to the motors at the rear of the Deck.

WINGS also increase the width of the deck from 9 to 10 inches!!! Being 10 Inches wide allows more comfort for a larger foot/shoe whilst adding extra leverage beneath the toes & heels, giving adult sized riders tighter turns & arguably deeper carving!

TRAMPA decks are considered the strongest & the most customisable decks on the market! They are best used when installed as complete electric decks from TRAMPA & highly versatile for DIY'ers looking to mix things up.

Our Deck performance is un-matched by any other brand! Once cooked our impenetrable composite weave is so strong that the secret material will not split or break in anyway. They come with a life time guarantee.

TRAMPA decks come in 2x lengths 9/69 & 9/73 & in several different Flex ply's (ply - the more layers of material added to the mould the stiffer the deck is) to accommodate any rider weight, in pretty much any environment, land, air & sea & regardless of which deck / ply you choose, or the environment that you use it in, because all TRAMPA Decks are sold as UN-BREAKABLE & to prove this we offer you a lifetime guarantee!

The stiffness of a TRAMPA deck is measured in "Ply", referring to how many layers of the secret formula material are used to make the deck. The more ply added, the stiffer & heavier the deck will be, ranging from 14-18ply in the 9/69 decks and 17-18ply in the Longer 9/73. The number 9 in the name refers to the width of the deck being 9 inches, whilst the 69 or 73 refers to the length of Centimeters (CM's) in the foot stance area. Yes we realise that's mixing up CM's with Inches, but it sort of sounds nice.... The most important things is that with all the different deck ply options over the 2 lengths we offer there’s a perfect TRAMPA deck for everyone!

TRAMPA decks are universally fitting, they can be drilled to fit all Truck or Binding systems known - this makes TRAMPA decks the perfect option when choosing an upgrade for your existing setup.

Throughout years the riders have put them to their paces and still nobody has ever broken a TRAMPA deck! Please see the Flexometer guides to help you find your perfect deck.

If you’re unsure as to what the best ply & deck is for you and would like some guidance then please fill in the "Which deck for is me questionnaire" by mailing this link.

Custom Mountainboard Truck CNC Precision made 16 or 17 Inch wide Mountainboard Trucks 'Channel Style (Spring) or 'Double King-Pinned' (Skate) Style

Its Your choice!! Its possible to fit either the time proven 16 Inch Wide Precision Mountainboard SPRING Trucks or the new 17 Inch Wide TRAMPA-IR Double King-pinned Trucks to ANY of the TRAMPA decks with 35º Fixing Angles...

With Spring Trucks you have the ability to be able to adjust your steering resistance on the fly, by simply pressing in a 4mm Allen key into the Spring Adjuster that pokes out from the top of the Truck. Turning the Spring Adjuster clockwise tightens the steering resistance making it stiffer & more suitable for faster or off road riding... You can then increase the firmness of the spring by installing a DAMPA into the middle of the spring... A TRAMPA DAMPA is stack of 3 Urethane balls (the middle one being 50% larger) & the TRAMPA DAMPA supports the Spring as the turning happens giving a nice firm feel to the the turn.... Its possible to fit different hardness dampas in different corners of the deck to give you a real true custom feel...

There are 7 options of Shore hardness of DAMPA (steering resitance) (8 options if you include riding with NO Dampa for the latimate steereing experience) AND as the SPRINGS can be installed in the inside or outside postions, that means there are in total 16 different steering settings when using the SPRINGS in the  TRAMPA Spring Trucks, and now there are even more options, its possible to install the TRAMPA BARRELS with special Anodised BARREL RETAINERS... The BARRELS are Hollow Tubes of rubber with a relatively firm hold compared to an un-supported spring (Un-supported by a Dampa installed in the spring) so the Barrel has a nice firm solid feel from the start of the steering...

Its possible to install different thickness Barrel retainers (4mm is standard, we offer 5, 6 & 7mm as upgrades), by instaling a thick base Barrel Retainer will in turn increase the steering resistance making for a firmer, tighter steering on the ride... great for speed and larger sized riders...

Both Truck options come in a huge array of anodised colours to choose from & BOTH Stles of Truck will accept ANY of the Mountainboard Motor Mounts That TRAMPA has to offer

Build your own Custom 6 Inch TRAMPA Wheel!! HYPA SUPERSTAR or MEGASTAR Wheel

TRAMPA's 6.5 Inch Low profile URBAN TREADS tyres have been specifically designed to fit TRAMPA's incredibly strong 6 Spoke HYPA & 5 Spoke SUPERSTAR hubs. My design brief to Frank was simple - make the smallest, best quality pneumatic tyre we possibly can, I want to radically changing the rough ride experience of that when riding with regular style longboard wheels, specially at speed when riding in Urban/City environments.... We all know the pavements & roads are far from a perfect surface so much so that sometimes its almost impossible to ride regular Longboard wheels, some of the pot holes around me are terrible but with these URBAN TREADS tyres fitted you can smash through all the imperfections whilst still enjoying that small wheel feel...

TRAMPA's URBAN TREADS tyres are arguably the PREMIUM TYRE in TRAMPA's range of tyres. Made with whats known a High TPI construction (TPI means Threads Per Inch & the URBAN TREADS tyre uses thousands of very Fine Threads per Inch to stitch between the outer lightweight nylon bands, this in turn gives the construction shape to the tyre) this High TPI means the tyre's construction is incredibly strong whilst still very supple, like a posh bicycle tyre but by smothering the Treads with premium quality HIGH GRIP COMPOUND motorcycle rubber to cover the High TPI construction, not only are the URBAN TREADS Tyre amazingly light weight but it has performance like that to match a premium motorcycle tyre!!

Having a High TPI & using hefty amounts of thick Motorcycle rubber means not only is the construction of the tyre incredibly strong but it will also wear incredibly well too. This extra strength in turn allows the tyre to be run at both, incredibly low tyre pressure or should the circumstances require (such as a skate park where you need to pump hard) inflated to being incredibly hard the URBAN TREADS Tyres can easily handle our factory set limit of 85psi, (but ONLY inflate to 85psi when fitting the URBAN TREADS on to the TRAMPA HYPA or SUPERSTAR hubs) but we have herd of some of the crazy TRAMPA Lab Rats (i mean team riders) are inflating over 100psi (i dont think their pump will allow them to get any more air in haha) & with currently no problems to report... But for sure, if one pop's at 100 psi it will certainly make one hell of a noise!! BANG!!​ haha! :-)

Riding on such a small sized tyre gives the most radical performance change to literally every board in the TRAMPA range. The is no doubt the tyre was developed specifically for the URBAN CARVER BOARD & more in particular the ELECTRIC URBAN CARVE BOARD where both products use a smaller deck & the smaller sized Mini Spring Trucks system,  the smaller board needed a slightly smaller tyre than that of the full sized 8 inch ATB decks to compliment the overall product size, so in true TRAMPA style we made the URBAN TREADS Tyre special for that application but since then we have found over these last cold wet winter months that the 6.5 inch URBAN TREADS tyres have also become the choice tyre for Mountainboards who are maintaining their riding skills in the out of season period by riding in indoor Parks or Tracks, just ask the world famous Brind Brothers - PRO TRAMPA Team riders, who have literally not stopped riding through the winter since the release of these new tyres...

TRAMPA's Electric boards have amazing performance with a top speed of well over 50kmph achievable on all models. When your hitting high speeds like this you need good tyres on your board. Thankfully the URBAN CARVE range of decks are fitted with super sexy 6.5 inch URBAN TREADS Tyres as standard. The reinforced, low profiled, wide center beaded with intelligently designed jagged edge around the side can be run on low inflation pressure which gives enough grip to cut muddy corners or nip down hard packed off road tracks no problem, but can also handle the super inflation for straight line flat out speed. If you wish to ride full speed we 1stly suggest you turn the SPRING ADJUSTERS clockwise to tighten the steering resistance, pre-loading more tension into your springs before you wish to hit high speeds will prevent potential wobble, and if you re beginning to feel a bit of wobble, then you should moce te springs to the outside position before attempting to go any faster. If you still feel speed wobble when the springs are in the outside position, then you should then further Add the TRAMPA DAMPA's to add more resistance to the steering to enable you to be able to go even faster :-)

The Urban Tread tyre doesn't only handle high speeds easily but riding around town where you are likely to be bashing up & down curbs & dealing with cracks in the road or potholes, then you are most likely, or you should be riding at much lower inflation pressures. The lower pressure gives so much comfort on the rougher stuff but of course does increase Drag making it harder for your batteries to perform well...

CUSTOM BINDINGS - Build your own Bindings & colour combo!

RATCHET BINDINGS are the Mountain Board rider’s primary choice of binding! The Ratchet Buckle mechanism allows you to easily position the binding to fit most adult sized shoes or boots. There is a release clip on the top of the Ratchet Buckle which works just the same as snowboard binding does, that release the pressure & allows you to step out...

The main Foot-Strap has a special 'Lug or locator' on the top of the Foot-Strap to house a special Hook that protrudes from the underside of Ratchet Buckle. This hook presses into the 'Lug' on the top of the Foot-strap preventing any sideways movement in the connection of the Strap & Ratchet Buckle

The Ratchet Buckle connects with a special M5 Star nut & M5x8mm Countersunk bolt & the Ratchet is mounted on the top of the Main Foot Strap. The LADDER STRAP Positions on the outside of the foot & feeds into the Ratchet Buckle. Levering the Ratchet buckle brings the two straps together. The Ratchet Buckle locks each time you lift the buckle tightening the two straps together until you have a snug but not tight connection over the top of your foot. The release clip can be tuff to move specially of your bindings have been ratcheted tight.

Ratchet Bindings work at their absolute optimum when combined with TRAMPA Heel Straps. HEEL STRAPS Completely lock your feet into any of the TRAMPA bindings to make you feel at one with the deck. When using Heel Straps you are 100% committed to the ride & by doing so you gain so much more control over the board.

With 3 pairs of different length Ladder Straps to choose from, the TRAMPA Heel Straps easily adjust to fit to any sized shoe that comfortably fits onto a Mountain Board . A CAMLOCK BUCKLE on one side of the strap is used to Lock the Ladder Strap on one side of your foot whilst a Ratchet Buckle is used on the other side for easy tightening/loosening adjustment. The Ratchet Buckle easily tightens the Ladder into the Heel Straps so that your foot is locked into a comfortable position!.

TRAMPA Heel Straps are universally fitting and are supplied with a Marine Grade Stainless Steel FITTING KIT as standard, so only take a few minutes to assemble.

ALL TRAMPA Bindings are assembled using a Marine grade A4 Stainless Steel hardware. The L-Brackets are 'multi positional' allowing the rider the exact foot-stance they require.

All TRAMPA bindings use Stainless steel Dome Headed Bolts, connected through the Footstrap into L-Brackets, ensuring no discomfort to the foot.

The L-Brackets are 'multi positional' allowing the rider the exact foot-stance they require

TRAMPA's huge range of bindings are the most customisable on the market - meaning you’ll be able to get the perfect fit for your riding style - in any colour scheme you can think up.

VESC 6 MkVI - TRAMPA gives you Maximum power!

READ MORE in the Description Tab above

Introducing the amazing VESC® 6 MKVI Speed Controller, the 6th major product update of the world famous VESC 6 motor controller product line. Packed with a variety of amazing new features, this VESC motor controller is certainly worthy of it’s pimpin’ gold logo.

New features, setting it aprt from the previous MKV edition are: Second UART port, increased current handling, SPI wired IMU, sensor voltage adjustment in software, Spin-To-Sart deactivation option, black anodized housing.

The first VESC controller capable of hibernating, your board can conserve power while not in use - reducing power consumption to just 20μA – less than the self-discharge rate of the batteries. Or with automatic power off, your VESC controller can switch itself off after a set amount of time.

No more loop keys! Compatible with power buttons / switches, the VESC 6 MKVI controller can be ready to go with a single press / flick. If desired, multiple devices can share a single button.

STS (Spin-To-Start) – it’s possible to set your board to power up with a small kick/nudge! This feature can now be enabled or disabled.


Features

- Current and voltage measurement on all phases (three phase shunts)
- Adjustable current and voltage filters (full phase filters)
- built in, SPI wired  IMU chip (accelerometer, gyro)
- Spin-To-Start
- Auto power off timer, adjustable - Regenerative braking
- Traction control (single and twin setup)
- Sensored or sensor less operation + hybrid mode
- full torque from zero RPM
- sensor less position control for most salient motors
- Configurable RPM-, current-, voltage- and power limits
- Input source: CAN, PPM, Analog, NRF
- Communication ports: USB, CAN,UAVCAN,  2x UART, SPI, I²C
- Throttle curve and ramping for all input sources
- Separate throttle curves for acceleration and brakes
- Seamless 4-quadrant operation
- Motor revolution, amp hour, watt hour counting
- Display of speed, power, duty cycle, amp flow, estimated range and battery status on App
- Accumulated data from arrays of VESC controllers
- Real time data analysis and read out via communication ports
- Real time data analysis and read out via VESC-Tool APP or VESC-Tool software
- Adjustable protection against:

          -    Low input voltage
          -    High input voltage
          -    High motor current
          -    High input current
          -    High regenerative braking current (separate limits for the motor and the input)
          -    High RPM (separate limits for each direction).
          -    Over temperature (MOSFET and motor)

Technical Data Sheet

- Voltage: 11.1V – 60V (Safe for 3S to 12S LiPo).
- Voltage spikes may not exceed 60V, do not use 13S LiIon!
- Current: Continuous 80A, peak 120A.  Values depend on the temperature and air circulation around the device!
- 5V 1A output for external electronics
- 3.3V 0,5A output for external electronics
- Modes: DC, BLDC, FOC (sinusoidal)
- Supported sensors: ABI, HALL, AS5047 and other encoders

* Android is a trademark of Google LLC.
Google and Play Store are trademarks of Google LLC.
PIXHAWK is a trademark of Lorenz Meier

MkIII Monster Box cable kit for TWIN Motor using 2x 20000 mAh cells

This Single Motor MONSTER BOX complete Cable kit is used to take the power from the MONSTER Box into the motor of a single Motor Electric Mountainboard. It is used to link 4x 6s 6200 Zippy compact cells packed to make 12s2p Power giving you loads of range :-) Thats enough power for a ride well over 20 miles in range!

The Batteries a fitted with female XT90 connectors, whislt the cables pass trough a 50Amp safety fuse to prevent all possible accidents into a single TRAMPA VESC to power a single motor TRAMPA Mountainboard giving you the amazing 12s power with massive rage that everybody is talking about... :-)

The finely stranded (1036 strands per 4mm core) & highest standard available copper cables (made in Germany) flex perfectly in their top quality & super flexible silicone coating to enable you to connect everything together neatly within the contents of the carbon fibre Beast Box, remember the VESC is mounted internally in the Beast Box and I can tell you it can be a bit of a squeeze fitting everything into the Beast, but having superflexible high quality cables to work with means everything can be easily moved around inside the box slipping them into the perfect position without the fear of damaging the cables or the hand soldered in the UK connections to the XT90 plugs...

The XT90 plugs have a little ridge on their exterior whilst the material they are made from is very strong and very cleverly we have made the Beast box lid with 2 precision made holes perfect for accepting for the XT90's to push through the lid from the inside of the box & rest against the rim of the hole in the lid, allowing everything else in the box to seal away enabling you to be able to, with the use of some squeeze silicone in a tube to become pretty much weather proof...

By the use of some suitably small 2mm holes next to the precision holes for the XT90 connectors it's possible in combination to neatly zip tie between the XT90's to lock them firmly in position  giving them a strong enough connection  so that so that you can easily push & pull the loopkey / cuicuit breaker at any time from the exterior with out the fear of damaging anything inside or out...!

Constructed using 4mm thick of the highest standard Copper available (that's lots of Super fine copper Strands - 1036 strands per 4mm core) and coated in Super Flexible Premium Silicone which has been TRAMPA Stamped to prove it's geniality & expected quality (Cus these top quality cables are not cheap) are used to maximise & maintain full performance in your Electric TRAMPA Board at all times!

66T OBD Motor Mount with 62T Pulley kit & Motor Filters - TWIN

TRAMPA WAND MAGNETO Remote Control - VESC Based remote gives all the control you could ever wish for

Introducing the Amazing WAND CONTROLLER

Frank Drenckhahn - King of design & production at TRAMPA & Benjamin Vedder - Creator of the VESC aka the 'Yoda of Electronics', spent the winter period of 2018/19 designing a revolutionary remote controller, with some new & very exciting 'E-Skate-specific-features' to work in direct relation with the VESC / TRAMPA series of products.

There are many basic remote control options already on the market, but none of them hit the high bar when it comes to features & reliability. Here at TRAMPA, we’ve experienced riding with in-sufficient, untrustworthy remotes. Consequently, we’ve always dreamed of holding a reliable, versatile, ever-lasting, informative & safe remote controller, that matches the outstanding performance of the VESC software & the TRAMPA equipment that they’d be so frequently paired up to. You should expect nothing less than magic whilst waving the WAND over TRAMPA assembled VESC Products!!

HARDWARE

High-end TRAMPA Electric boards deserve to be controlled with a high-end remote, you need to be 100% in control over the Monster under your feet! Personally, I always dreamed of something that feels nice in your hands, made of high grade material, with a little bit of weight to represent the same high quality level of our TRAMPA boards, and the cutting edge technology the VESC offers. This remote is made from 6061 T6 (Aero-grade) Aluminum with a sleek carbon fiber battery lid. You can see & feel the quality straight away.

REAL TIME DATA DISPLAY

The WAND is fitted with a circular high resolution OLED display that reveals all the crucial information you want to have at hand while riding your board. The screen might be small, but the list of data it shows is HUGE! You’ll be able to scroll through and see your current speed, average speed, amp draw, duty cycle, average watt hour draw, battery indicator (for both board & remote), recuperation and more to be added through firmware updates!

Whatever data the VESC captures can ultimately be displayed on the OLED screen. Benjamin even added in a few tools to display animated graphics, for ultimate pimpness!

SMART REVERSE

Ever over shot the junction & wished you could reverse a little to pull you back from the traffic? Well now with the WAND in your hand, pulling back on the Thumb Controller bringing you to a stop & keeping your thumb in the braking position will automatically instigate the Smart reverse feature which will ramp up enough Amps to switch the rotation direction of the motor but just at slow speed so that the board reverses you out of trouble..... A very very clever feature designed to keep our clients safe...

SAFETY & GESTURE Control: AN OUTLOOK TOWARDS FUTURE FW UPDATES

What is really exciting is the IMU (Inertial Measurement Unit) inside The WAND... The IMU knows the exact orientation of The WAND in space and gathers acceleration values of all the space axis at the same time, acceleration, speed & elevation. Using the IMU, Benjamin will in future be able to code some really useful safety features, as well as some playful things. For instance; one day the remote will be able to tell if you take a tumble & will be able to stop your board safely. It will know when it is resting upside down on a surface, and refuses to send accidental signals to the board. Powering up when you pick it up & going to sleep after 5 minutes of inactivity The WAND is smart enough to save its own battery! It can even be used as a water spirit level, helping you to align things perfectly! Expect some nice FW updates in the FUTURE. IMU features will become available over a period of time!

TRANSFORM YOUR REMOTE

On top of the features mentioned above, amazing piece of tech features the options to either be converted to a pistol grip style trigger remote, or to have an additional small trigger on the lower side to allow additional index finger control. I like to use my index finger to send acceleration commands, while using my thumb to send brake signal commands. Others want to use their thumb or index finger only. Much alike TRAMPA’s boards, these remotes are made to be customised around you!

SAFE KEEPING

We’ve all wasted too much time on the pre-riding ritual known as “Where the **** did I leave the remote?!” Well no more. We decided to equip The WAND with a Magnetic bottom panel. A small metal sheet or magnet attached to your board (stick a big washer to your Battery Box or similar), will keep your remote safe where it belongs all the time, or you simply keep your remote on the fridge, next to the car keys!

BATTERY LIFE

Battery life has always been an issue in the past. Sometimes you want to go out for a ride, but you forgotton to charge up your remote. Then after a quick charge, you end up worried that it‘ll die before the end of your ride.

When Frank & Benjamin designed this remote, ultra low energy consumption was a prime goal to achieve.

We chose to use standard AAA batteries, so that you can easily carry spares & swap them out - like changing the batteries on your TV remote, giving you ultimate confidence that you will never ever run out of battery. Two tiny AAA cells are good for 30 hours of constant operation. AAA cells are available at gas stations, supermarkets, drug stores, or even in a remote house in the middle of nowhere in a kitchen draw, should you get real desperate while out on your endless trails!

SOFTWARE & SUPPORT

We don't want you to have to buy a new remote because the software becomes outdated, so we made sure this remote would have a USB & SWD port, allowing you to easily flash the latest firmware, and unlock the latest features when they get released. This remote is future proof & will surprise you many times over its life. The Wand Firmware will be Open Source. Please browse Benjamin Vedders Github for source files and copyright information : https://github.com/vedderb

COMPATIBILITY

This remote is fully compatible with the TRAMPA NRF Dongle. An NRF connection is required to pair the Controller to the VESC device. Depending on if or when you bought the dongle, you might need to update its firmware in order to make the connection to the controller though the VESC, which is a simple task. This remote is compatible with any ESC that is based on VESC technology, and running the VESC firmware. Simply plug the TRAMPA NRF Dongle into the UART port of your ESC.

CALIBRATION AND MULTIPLE BOARDS

This remote doesn't require calibration. A simple one click pairing procedure does the trick. This remote will become a solid partner to all your boards.  No more need for multiple remotes for lots of boards, unless you want to ride out with your friends. In which case you can leave your old PPM remote receiver plugged in & switch over to that using the VESC-Tool App.

In order to connect The WAND to your VESC or VESC based ESC, you will need to do a Firmware update on that ESC. Simply plug the TRAMPA NRF Dongle into your VESC & pairing is pretty much automatic, just follow the on-screen instructions. The TRAMPA NRF Dongle can be updated to the latest, compatible FW, using the latest desktop VESC-Tool.

Technical features for the WAND;

- Stable & safe with NRF wireless connection

- High resolution OLED display

- 2x AAA standard size battery which will give over 60 hours of battery life

- Exterior dimensions:144 x 31x 22mm

- Full Aluminum 6061 T6 SOLID CNC'd housing - Anodized Black with Laser Logo's

- Magnetic bottom panel. The remote sticks to metal surfaces for safe keeping.

- Easy connectable to thousands of devices

Modes that the WAND can control;

- Forwards

- Brake

- Reverse

- Cruise Control

- Pre-programmable to allow you to select between performance setups so you can switch between defined user profiles. Adjusts power levels, acceleration, top speed brakes performance. Define Profiles for Learner, Intermediate & Advance riders who will all prefer different setup's

OLED Display will show you;

- Current Speed

- Average Speed

- Amp Draw

- Battery status of Remote

- Battery status of Board its connected too

- Duty cycle

- Estimated range

- Watt Hour Consumption

- Many many more features yet to be written about :-)

Saftey;

- Shock sensor (will become available via future Firmware update)

- No signal when remote is turned head over (e.g. trigger resting on surface)

- Safe NRF based wireless communication

- Safe pairing to board

- No calibration needed

- No interference with other remotes (group rides)

- Auto power off, auto power on

- Regular firmware updates available

ADDITIONAL FEATURES

- Your Android Phone or Mobile device with the VESC App & the WAND remote will share the same connection to VESC giving seamless connectivity.

- Firmware can be updated via VESC-Tool

- Works with existing TRAMPA NRF Dongles (Dongle may require a Firmware update)

- Different size triggers to fit different sized fingers

- Can be transformed to be a 'Finger Trigger' style remote where an additional feature of adding a Handle for comfy holding

- Can be transformed to have 'Thumb Stick' & 'Small Trigger' on lower side (use index finger for acceleration and thumb for brakes)

- Built in IMU (gyro and accelerometer) Be surprised what magic this can do in the future.

ULTRA POWER Charger with XT90 & Balance Cable Extensions

Using the ULTRA POWER Charger It is possible to charge & balance 2x Batteries packs up to 12s in size at the same time...

SO for example if you have 2x Electric Boards in your collection, (lucky boy) if they are both running a single 12s pack (i.e. 2x 6s 22000 mAh HRB Cells in the MONSTER Box or 6x 2s HRB 10, 12 or 16000mAh in the Underboard Battery Tray or the BEAST box's) then you can fast charge & balance 2 x Boards at the same time or if you only have 1x Board but you are running 2x 12s packs (i.e. 4x Zippie compact cells fit directly into the Monster Box using a Graupner charger you can only charge 1x 12s pack at a time so you will need double the time to charge 2x 12s packs if you have 4x Zippies cells unless you purchase another Graupner charger so you can then charge both cell packs at the same time -  if this is the option you have selected, then it is also possible to boost the speed of the charge of your 2x Graupner chargers by placing a Booster charger before them) then this is the deluxe charge for you.

This charger is terribly expensive but it is everything the 2x Graupner chargers with a Booster box option tries to be. It can charge incredibly fast up to 15A, it has an internal booster with amp adjustment for charging & Balancing all kinds of cells. The best part about this charger is that you simply plug it in & it knows the cells you have, Its possible to mix up the balance cable connections when plugging in for the first time but it alerts you to this &you simply swap over the cables & it knows... (best practice is to mark the balance cables so you know in the future which one goes into which port without having to exchange them each time for guessing wrongly lol) simply select the amount of Amp charge you wish to put into it by pressing the select button (a low 2A charge will balance your batteries beautifully but will take a long time to do, where as turning the charger up to 15A will give you a fast boosted charge,  which is great if the weather is amazing & you cant get enough riding on that day but its not good practice to fast charge your cells all of the time, so only fast charge when you don't have time to wait for a nice balance charger, but selecting a low to mid power option on a regular basis will keep your cells in the best operating conditions),

The ULTRA POWER Charger is not supplied as standard with Balance extension cables or XT90 Cables to plug into your batteries. We have acquired some Balance extension cables and have also made some nice 30cm TRAMPA Silicon charge cables with XT90 connectors on to make charging with the ULTRA POWER Charger to be really easy & fiddle free. The Cable kit is available at a discounted price when purchased with the ultra power charger, however the extension cables can be purchased anywhere on the internet and its not rocket science to make your own extension cables if you have the time to do this & will of course save you a few quid in the mean time.

This Special ULTRA POWER Charger for the Complete TRAMPA Electric Boards comes Supplied with a complete ULTRA Power Charger Cable Extension Kit which makes plugging into your board really easy & so much less fiddly than the shorter cables it comes with PLUS it comes with either UK or EURO wall Plug (sadly no US Charger plug option but a simple world wide adaptor plug will do the trick to convert it). Please select your wall plug option below.
