Complete Wheels - By Tyre Size



All of our wheels are fundamentally made from 4 parts - Hubs, Tyres, Inner-tubes & Bearings. With a whole bunch of options available for each, there are hundreds of different wheel combinations possible - for any board / terrain / application out there!

Different wheels drastically change the performance & range of a board.

Check out this video to see the effect wheel size had with an OPEN BELT DRIVE Mountain Board.


TRAMPA Hubs utilise various bearing positions for both aesthetic & performance benefits

CENTRE SET - Keeping the bearings centrally-located within the wheel leaves the wheelbase unchanged, for a nimble feeling & riding board.

OFF-SET - Off-setting the bearings moves the wheels further from your feet - widening the boards wheelbase, which in turn increases stability! Perfect for large people & small Boards.  Initially created in conjunction with narrower Truck Models (12-Fifties & Mini Spring Trucks), in order to grant clearance for bigger tyres or rear-mounted battery boxes.

DEEP-DISH Hubs are as pimp as it gets! The elongated rims widen the wheelbase of a board as well as the contact patch of the tyres - improving both stability & grip, while looking amazing!

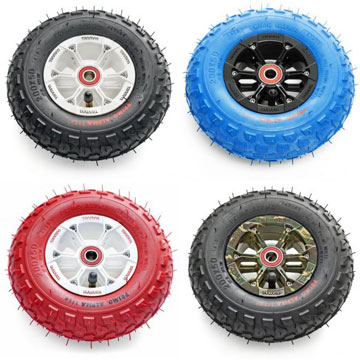

HYPA Hubs have a 3.75 x 2 inch rim & will fit all tyres up to 8 inches in diameter.

The
HYPA hub is time-proven as being one of the best hubs on the market - We’ve sold tens of thousands of them throughout the years for countless applications - & to this day problems are a rare occurrence!


Made from premium DuPont Plastics, the 6-spoke Hypa hub has an amazing strength-to-weight ratio – weighing just 125g each, they’re the lightest hub in the TRAMPA range! Perfect for freestylers looking to lose every gram off of their board!


Available in a huge range of colours / patterns!

HYPA Hubs use a 2-piece centre-set split-rim design, held together using 6x m4 x 35mm Socket Cap Bolts. Once assembled, can handle up to 50 PSI!

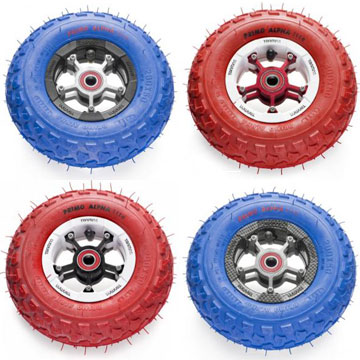

SUPERSTAR Hubs have a 3.75 x 2 inch rim & will fit all tyres up to 8 inches in diameter.

A technically designed masterpiece of circular lushness! The 5-spoke SUPERSTAR is the best of both worlds when choosing between strength & weight. Composed of DuPont plastic split rims & Premium T6 Aluminium spokes, the completed hub can handle over 70PSI & weighs just 179g.

It's possible to fit a SPOKE CONVERSION SPACER within SUPERSTAR Hubs - allowing them to accept smaller bearings & axles, meaning its possible to fit SUPERSTARS to any truck with an 8mm, 9.525mm or 12mm Axles!


Rims & Spokes available in a huge range of colours / patterns!

Superstar Hubs are a 4-piece centre-set design, joined together using 5x M4x40mm bolts


PHATLAD Hubs have a 3.75 x 2.5 inch rim & will fit all tyres between 6 - 8 inches in diameter.

PHATLADS utilize a special split-rim design that can fit any 6, 7, 8 & even 10” tyre that TRAMPA offers - One hub to fit them all will transform your ride experience!

PHATLADS Hubs have two sets of bolt holes, in an inner & outer position. The outer set is for the assembly of the Hub, while the inner bolt holes are for attachment to TRAMPA’s range of Slave pulleys.  This is to allow for 'hot swapping' of wheels without having to take them apart -  saving lots of time when testing different setups!

Injection molded using premium Dupont composites, PHATLADS weigh just 226g - making them the lightest choice for 9 + 10" tyres.


Available in a huge range of colours.

PHATLADS Hubs use a 2-piece OFF-SET split-rim design, held together using 5x m4 x 45mm Socket Cap Bolts.


PRIMO 3-SPOKE Hubs have a 3.75 x 2.5 inch rim & will fit all 9 - 10 inch diameter tyres.

Weighing 300g, Primo 3-Spokes are slightly bulkier than
TRAMPA’s other composite-hub designs. The cheaper choice for fitting 9” or 10” tyres to your board, Primo 3-Spokes use premium composites, paired with a thick-walled structure to make it one of the toughest hubs going!

PRIMO 3 spoke hubs are a 2-piece CENTRE-SET split-rim design, joined together using 3x M6x30mm Socket Cap bolts.


It was hard to ever imagine that TRAMPA's SUPERSTARS could ever be improved upon - but that's just what we’ve gone’n’done!! CNC Milled from a solid block of T6 aluminium, polished, anodised (in 10 different colours!) & logo-ed up for a pimp appearance - MEGASTAR Hubs can handle the highest inflation pressures of any small wheel on the market! Increasing inflation rates increases maximum roll speeds, making these hubs the perfect option for the insane among us!

TRAMPA's REGULAR SUPERSTAR SPOKES are made from Extruded 6061 Aluminum (Super Strength Aero-grade quality) & comes in a range of colours to satisfy your taste. TRAMPA’s new BB STAR Spokes are as lush as it gets - CNC’d from T6 Aluminium, available in two models - SKINNY (fits ALL MEGASTAR rims) or PHAT (fits OFF SET MEGASTAR 9 ONLY).

It's possible to fit a SPOKE CONVERSION SPACER within MEGASTAR Hubs - allowing them to accept smaller bearings & axles, meaning its possible to fit MEGASTARS to any truck with an 8mm, 9.525mm or 12mm Axles!


TRAMPA's MEGASTAR Hubs can be used in conjunction with any of the Pulleys that fit to 5-spoke hubs!

Megastars are available in 5 different models, with varying Rim Sizes & Spoke Positions -


Megastar 8 CENTRE SET
3.75 x 2”  Rim - fits all 5-8” diametre Tyres
& Regular Superstar / Skinny BB-Star Spokes.




Megastar 8 OFF SET
3.75 x 2”  Rim - fits all 5-8” diametre Tyres
& Regular Superstar / Skinny BB-Star Spokes




Megastar 8 DEEP DISH
3.75 x 2.5” Rim - fits all 6-8” diametre Tyres
& Regular Superstar / Skinny BB-Star Spokes.




Megastar 9 OFF SET
3.75/4 x 2.5” Rim - fits all 6-10” diametre Tyres
& Regular Superstar / Phat BB-Star Spokes.


Megastar 9 DEEP DISH
3.75/4 x 3” Rims - fit all 9-10” diametre Tyres
& Regular Superstar / Skinny BB-Star Spokes.

ALL Megastar Hubs use a 4-piece design, joined together using 5x M4x40mm Socket Cap bolts.


TRAMPA's incredible range of STICKIES Longboard Wheels have taken the world of Longboarding by storm!

Made with the highest grade of Urethane in a range of colour-coordinated Hardnessesavailable as either 83 or 90mm in size, this variety compliments all types of rider, across all the various aspects of street riding!

The edges of STICKIES wheels are beautifully rounded, allowing smooth transitional turns, while helping to avoid chipping & cracks at the same time. STICKIES Longboard Wheels will fit ALL Longboard, Street-board & Skateboard Trucks using 8 or 9.525mm Axles.







Watch Team Captain Sonnie Dibben talk through the various tyre options




Oversized Longboard Wheels - being 125mm in Diameter, GUMMIES are much larger than any other Longboard wheel on the market! Using High-Quality SUPER SOFT Urethane (75a) with 50mm wide surface contact GUMMIES perform like their name suggests - they’ll grip like gum to the pavement - allowing the most insane turns you wouldn’t believe possible! Thanks to their larger size, GUMMIES Wheels glide over cracks in the pavement & smash through the obstacles that would stop smaller wheels dead.




We all know the pavements & roads are far from a perfect surface - so much so that sometimes it's almost impossible to ride with Longboard wheels. The design brief for the 6.5 inch URBAN TREAD Tyre was simple - make the smallest, best quality pneumatic tyre possible.

The intelligent Jagged-Grip design can be run on high or low inflation pressures. Low pressure gives more grip for muddy corners & trails. High Pressure is perfect for flat-out straight-line speeds! High quality rubber compound & a high TPI (thread-count per inch) make this hub light-weight & hard-wearing!


7” Tyres are a good balance of size & weight. While still big enough to handle rough terrains & build up to impressive rolling speeds, the smaller size helps to save on weight.


7” INNOVA INLINES - With straight cut tread & the ability to handle high PSI, the INLINE  is the perfect option for easy rolling. Working best on smooth surfaces such as skate parks, tarmac or asphalt, the 3mm deep ‘In Line’ grooved surface, encourages the tyre to track in a straight line! Unlike standard Longboard/street style wheels, the pneumatic INLINE tyre is easily big enough to glide over cracks, stones or holes, & will handle hard-packed rougher terrain, such as gravel path with no problem.


7” MUD PLUGGERS- Using a deep & aggressive tread pattern that creates 'Grip on top of Grip', with straight sidewalls and a rigid rubber structure, MUD PLUGGERS have a box-ier shape that increases surface contact. Able to run on both low & high PSIs, the wide center bead both reduces rolling resistance and improves traction! Produced using a soft 2PR rubber compound with a high TPI (thread-count per inch), the resulting tyre is amazingly grippy & hard-wearing!


8” Tyres are the first choice for many riders, and are generally considered the “industry standard” when it comes to Mountainboard wheel sizes. Being so popular, and the perfect size for many applications, we offer a HUGE range of 8” tyres!

8” TRAMPA TREAD TYRES - A time-tested favourite among team riders, the TRAMPA TREAD uses an aggressive tread pattern and a choice of hard or soft rubber compound, these Tyres are a solid choice for most terrains! SOFT COMPOUND TREADS are ideal for riding on hard-packed surfaces, whereas HARD COMPOUND TREADS are much better gripping in softer mud


8” PRIMO ALPHA TYRES - Using a soft 2PR rubber compound & high TPI (thread-count per inch) - PRIMO ALPHAS are light-weight, grippy & hard-wearing! Its design incorporates a wide center bead to allow & maintain straight line speed, whilst the surrounding tread is beautifully sculpted with wide grooves that’ll give traction regardless of the terrain!


8" PRIMO STRIKER TYRE - A favourite among boarder-X racers, the PRIMO STRIKER was designed for fast riding on hard-packed dirt. Made using a hard rubber compound with a Wide Center Bead to help achieve the maximum rolling speeds. The close cut grip pattern around the sides of the tyre gives loads of grip on changeable terrain.


8" MUD PLUGGER TYRES - using a deep & aggressive tread pattern that creates 'Grip on top of Grip', with straight sidewalls and a rigid rubber structure, MUD PLUGGERS have a box-ier shape that increases surface contact. Able to run on both low & high PSIs, the wide center bead both reduces rolling resistance and improves traction! Produced using a soft 2PR rubber compound with a high TPI (thread-count per inch), the resulting tyre is amazingly grippy & hard-wearing!


8” DIAMOND TREAD TYRE - Made from relatively soft rubber with a close-cut tread pattern & a ballooned-shape, the DIAMOND TREAD Tyre is a perfect all rounder option, giving great grip on hard surfaces & good grip when heading off road - especially during the summer months.



8" INNOVA INLINE TYRE With straight cut tread & the ability to handle high PSI, the INLINE  is the perfect option for easy rolling. Working best on smooth surfaces such as skate parks, tarmac or asphalt, the 3mm deep ‘In Line’ grooved surface, encourages the tyre to track in a straight line! Unlike standard Longboard/street style wheels, the pneumatic INLINE tyre is easily big enough to glide over cracks, stones or holes, & will handle hard-packed rougher terrain, such as gravel path with no problem.



8" INNOVA SLICKCUT TYRE - Kevlar banding, a high TPI (thread-count per inch), & hard compound rubber make the INNOVA SLICKCUT a light-weight & amazingly strong tyre. The Kevlar banding allows the tyres to handle insane inflation rate, paired with a tread pattern suited for hard surfaces, this is the ultimate tyre for high speed road racing!

8" GOLFA TYRE - Looking as though they came straight off a Golf-cart (hence the name) the GOLFA tyres are much wider than other 8inch tyres, to create a huge contact patch & unparalleled grip. Due to the extra width - GOLFA Tyres will only fit to hubs with  2.5inch deep rims.


9” Wheels are a huge advantage when riding on challenging terrain. The Larger circumference allows for a higher rolling speed, while the extra width provides more extra grip.

9” PRIMO STRIKER TYRE - A favourite among boarder-X racers, the PRIMO STRIKER was designed for fast riding on hard-packed dirt. Made using a hard rubber compound with a Wide Center Bead to help achieve the maximum rolling speeds. The close cut grip pattern around the sides of the tyre gives loads of grip on changeable terrain.


9” INNOVA INLINE TYRE - With straight cut tread & the ability to handle high PSI, the INLINE  is the perfect option for easy rolling. Working best on smooth surfaces such as skate parks, tarmac or asphalt, the 3mm deep ‘In Line’ grooved surface, encourages the tyre to track in a straight line! Unlike standard Longboard/street style wheels, the pneumatic INLINE tyre is easily big enough to glide over cracks, stones or holes, & will handle hard-packed rougher terrain, such as gravel path with no problem.


9” DIAMOND TREAD TYRE - Made from relatively soft rubber with a close-cut tread pattern & a ballooned-shape, the DIAMOND TREAD Tyre is a perfect all rounder option, giving great grip on hard surfaces & good grip when heading off road - especially during the summer months.


9” MUD-PLUGGER TYRES - using a deep & aggressive tread pattern that creates 'Grip on top of Grip', with straight sidewalls and a rigid rubber structure, MUD PLUGGERS have a box-ier shape that increases surface contact. Able to run on both low & high PSIs, the wide center bead both reduces rolling resistance and improves traction! Produced using a soft 2PR rubber compound with a high TPI (thread-count per inch), the resulting tyre is amazingly grippy & hard-wearing!


Perhaps too big for boards, 10" wheels are perfect for go-karts, golf buggies, trikes, tractors & countless other applications.The larger circumference means less roll-resistance,  allowing greater top speeds. The extra width means the tyres allow more surface contact, meaning greater grip!

10" DURO-Tread Tyres are designed like the tyres you might find on a motor-enduro bike, these hard-wearing tyres are made for long journeys & potentially aggressive terrain.The simple-yet-effective tread on this tyre provides enough grip for on & off road use


10" Tractor Tread uses aggressive grip like that you’d find on (as the name suggests) a tractor. This tyre will have no problem finding grip, even in the slippiest of mud.
