And what are the full dimensions of your electric skateboard enclosures? It only says the length (20cm to 70cm), but I don't see anything else about width or depth, unless I missed it(which is possible).
in regard to the underboard battery enclosures, they are very much in development, although they are already proving to be very popular as they are very versatile, they can be cut to what ever length you want, the depth is approx 25mm & i agree with you it would be very useful of we could show some schematics regarding the dimensions of the battery box enclosures and fitting dimensions.
Its possible to cut slits into the under board battery box and bend it around the radius of the deck, the slits allow the flex in the deck to continue performing whilst so long as you take as long a battery enclosure and put as many batteries in there as possible will take you for a either a very very long way or a short distnace very very fast!! :-)

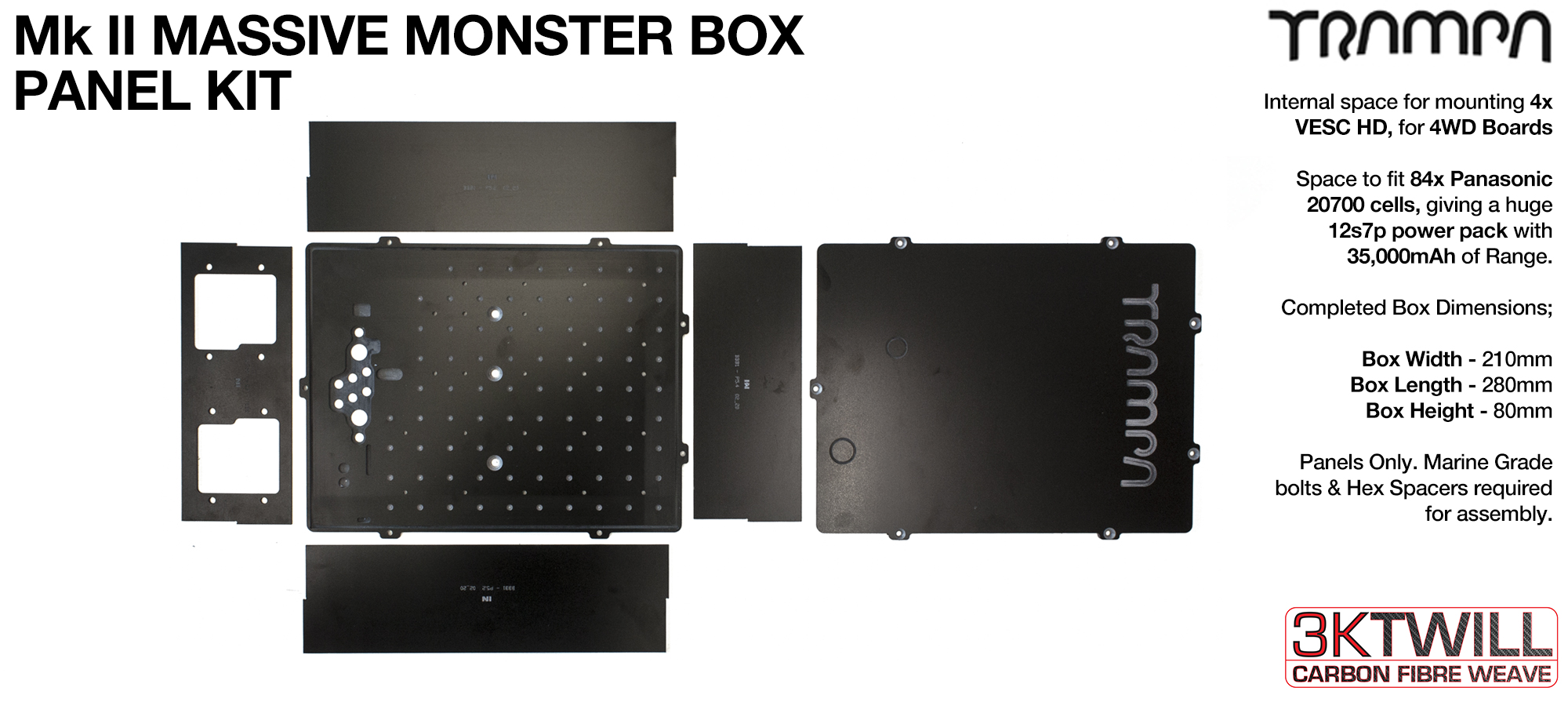

TRAMPA's amazing 35A BATTERY PACK will quite literally change your life! It is designed to secure enough TESLA 20700 Cells to give the MAX power performance to your TWIN MOTOR Mountainboards. The MONSTER BOX is positioned between your legs in the center of the board! It is made from 2mm & 4mm thick 3k Twill Carbon Fiber panels & has been CNC precision machined as well as being internally 2.1mm CNC grooved to allow the 2mm side panels to interconnect perfectly giving a very tight connection into the thicker 4mm base & lid giving us the claim of certainly heavy Splash Proof!
Using M6 Countersunk Bolts for neatness the Battery Pack secures directly to the center of the deck, due to its huge size, TRAMPA's Battery Pack will only comfortably fit to the NEW TRAMPA BigBoi Decks. Premium Quality Rubber membranes are fitted into oval shaped pre-cut holes which are located all around the box, making the BATTERY PACK pretty much as close to Water proof as it gets whilst, as easy/convenient to wire up as it could possibly be...! GENIUS!
TRAMPA's amazing 35A Battery Pack will perfectly fit 84x Panasonic 20700 cells, which are the same cells used in the TESLA cars. Each cell has a capacity of 5000mAh, to give you a massive power pack of 12s7p, 35,000mAh of range...!!
2x 6s batteries harnessed together makes TWIN 12s. The power is passed through XT90s Anti Spark Connectors (in case anything goes worng) directly into the TWIN VESC's. To confirm, you need 1x V6 VESC speed controller for each motor. TWIN 12s Power is usually more power than most riders can handle but the MONSTER BOX is also plenty big enough to house even bigger batteries, up to 80x 18650 cells which is MASSIVE!! Using regular cell spacers to make custom made batteries you can gain options such as 12s6P, 11s7P or 10s8P - OMG AMAZING!!!
TWIN motor decks do not give you higher top end speed, the top speed is usually limited by the battery used & the gearing applied, but most importantly TWIN Motor decks will give you a lot more grip, especially when riding off road in loose dirt or up steep hills! TWIN Motor Decks give you more than double the grip & you will accelerate considerably faster than single motor board.
Assembling the MONSTER BOX is highly pleasurable, it connects together like Mechano dream, but mostly its a very exciting time anticipating the sensation of all the power you are about to unleash, its not called the MONSTER BOX for no reason ya know!! lol! Stainless steel Countersunk bolts connect into both the Base & the Lid of the box, screwing neatly & tightly into threaded HEX spacers... As the lid is tightened down, you get a satisfying click as the panels lock together, giving you the confidence that everything has dropped into place perfectly as the panels slips into the groove & the gaps are no longer visible! Awesome bit of kit!
Battery Box Width - 210mm
Battery Box Length - 280mm
Box Height - 80mm
